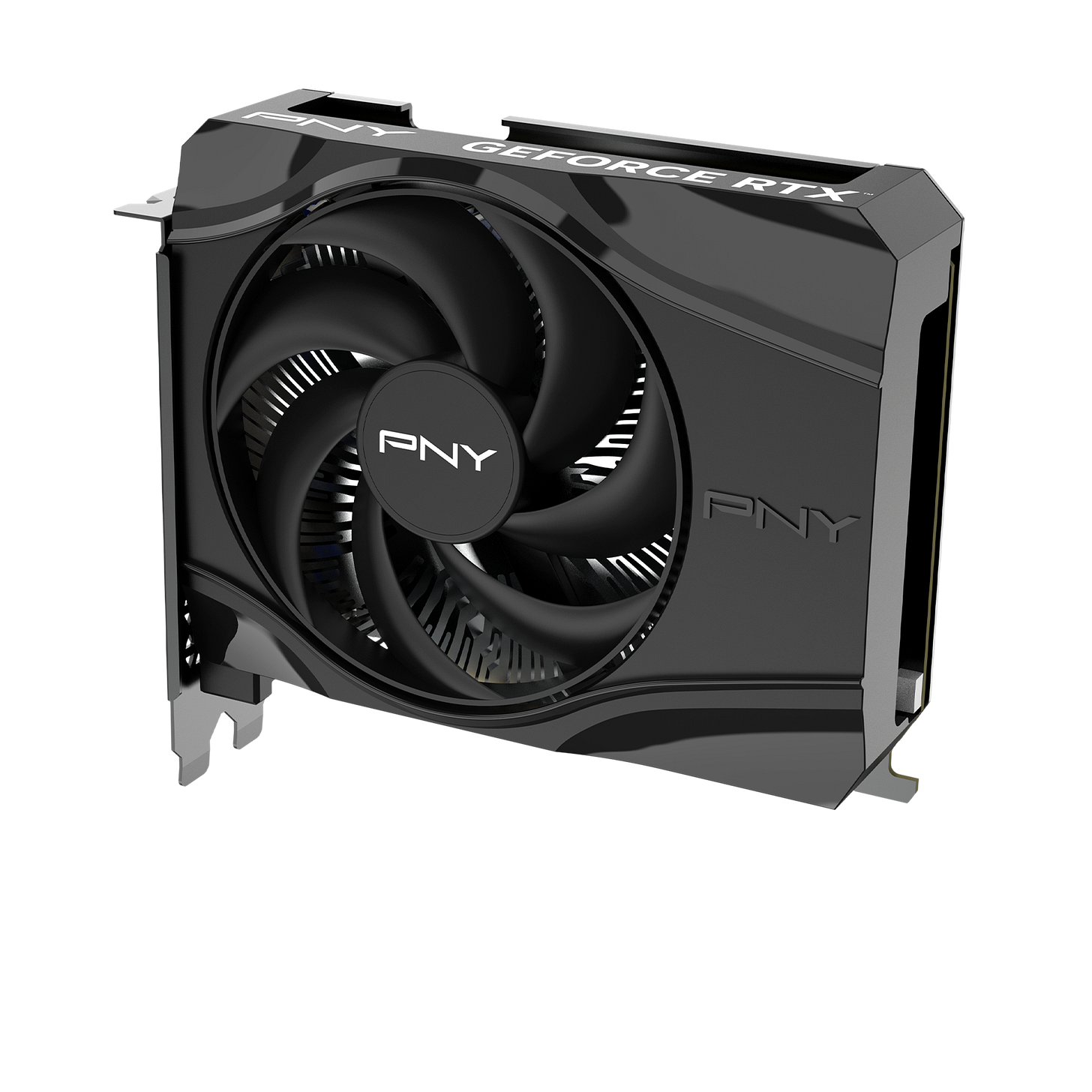

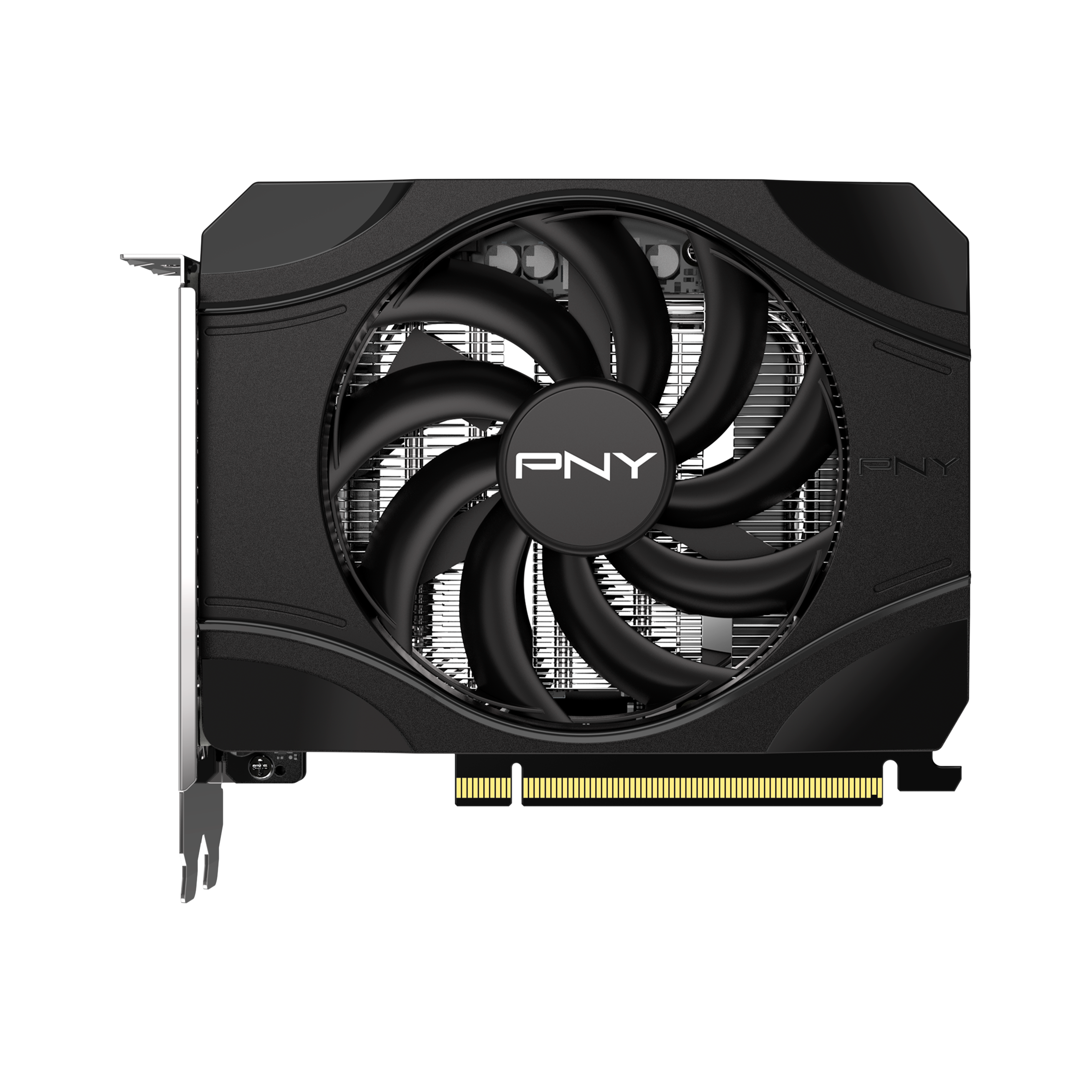

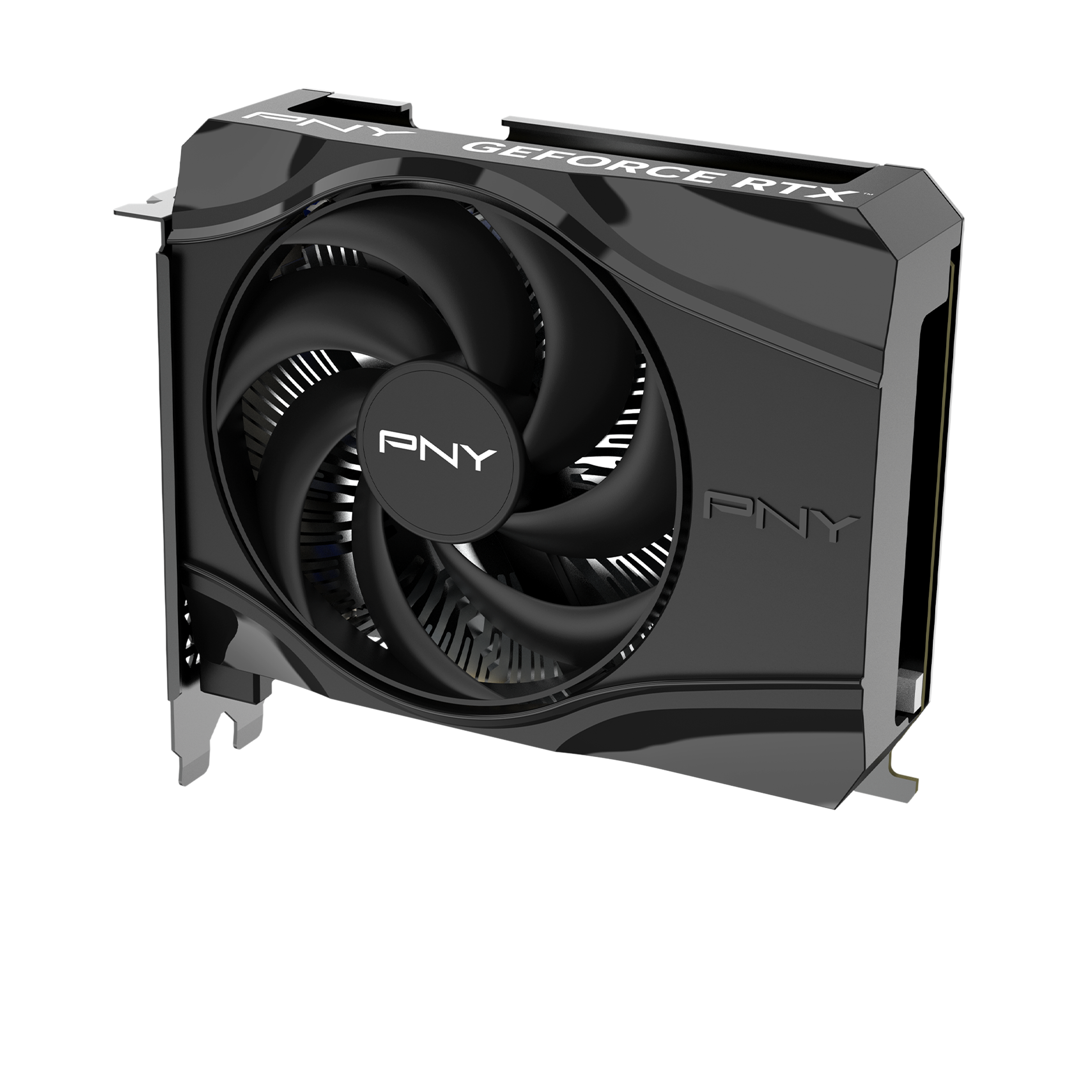

The PNY GeForce RTX 5050 8 GB Single Fan is built for smaller spaces and compact builds. It fits well into systems that don’t have much room to spare, while still bringing in features like DLSS 4 and NVIDIA Reflex. If you’re not deep into tech or just want a clear explanation of what this card actually does without things getting overcomplicated, this guide is for you. We’ll go through the specs one by one and explain what they mean in plain terms. You won’t need to know every technical keyword to follow along. I made this to help anyone learn without feeling overwhelmed, while still being thorough. The MSRP for the RTX 5050 model sits at $249 for reference, but price depends on the manufacturer, features, region, and availability.

What’s New Inside the GPU

Blackwell replaces the older Ada generation and comes with updated components that handle newer types of workloads better. The Tensor Cores are now in their fifth version. These are small processors inside the GPU that help with AI-driven features, including DLSS 4, which lets your games run faster by using AI to create extra frames between the ones the card actually draws. This version also works with something called FP4 math, which is a smaller, faster way of doing AI calculations that keeps things quick and efficient.

Ray tracing also gets an update here. The dedicated cores that handle that effect are now in their fourth version. They’re built to handle bigger, more detailed scenes with lots of geometry. That helps games that use ray tracing run more smoothly and look more accurate, especially in lighting and reflections.

What You Get in Raw Performance

The RTX 5050 includes 2,560 CUDA cores. These are the cores that do most of the work when you're playing games or using creative apps. Each core handles a small piece of the task at the same time as the others, which lets the card process a lot of things in parallel.

This model runs at a base clock of 2,317 megahertz and boosts up to 2,572 megahertz when the card has enough thermal and power room to go faster. The boost clock kicks in automatically depending on temperature and current load. The clocks line up with what you’d expect from an entry card, and they’re dialed in a bit lower by default to match the compact size and single-fan cooler. That helps the card stay balanced, keeping performance as steady as possible without running too hot or needing extra setup.

VRAM, Speeds, and What That Means for You

The RTX 5050 has 8 gigabytes of GDDR6 memory, which is a step behind the newer GDDR7 used in higher-tier cards, but still fast enough for 1080p gaming and most creative tools. GDDR6 helps move textures, visual effects, and large chunks of visual data through the card while frames are being drawn. This type of memory is called VRAM, and it works separately from your system’s regular RAM to store graphics-related data like textures, lighting, shadows, and game assets.

The memory connects to the GPU over a 128-bit path, which works like a lane that data travels through. Wider and faster lanes can carry more traffic, and this setup gives the 5050 a total memory bandwidth of 320 gigabytes per second. That’s the speed at which it can move data between the GPU and its memory, and that number helps keep games running smoothly when a lot of information needs to be loaded quickly.

8 GB still covers common use, but it’s getting stretched in newer games and creative tools, and the fact that it’s running last-gen memory doesn’t help. That won’t always cause problems, but depending on the game or workload, memory can start to hold things back. There’s no other memory option for this card, so if you’re planning to keep it for a while or work with larger files, that limit could show up sooner than you’d like.

Power and Cooling Design

This card uses up to 130 watts at full load. That puts it slightly below the higher-tier models and keeps things easier when you’re building or upgrading a system. Most mid-range power supplies will handle this without a problem. It connects with a single 8-pin power cable, which is one of the most common connectors in modern power supplies.

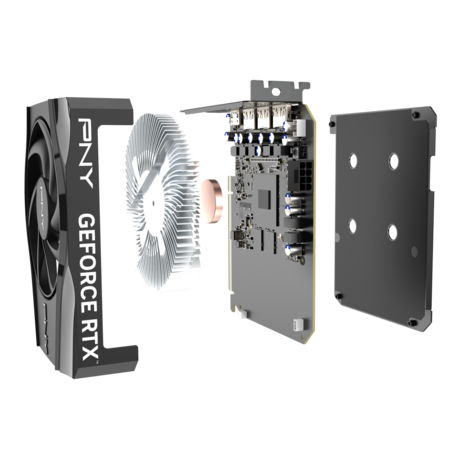

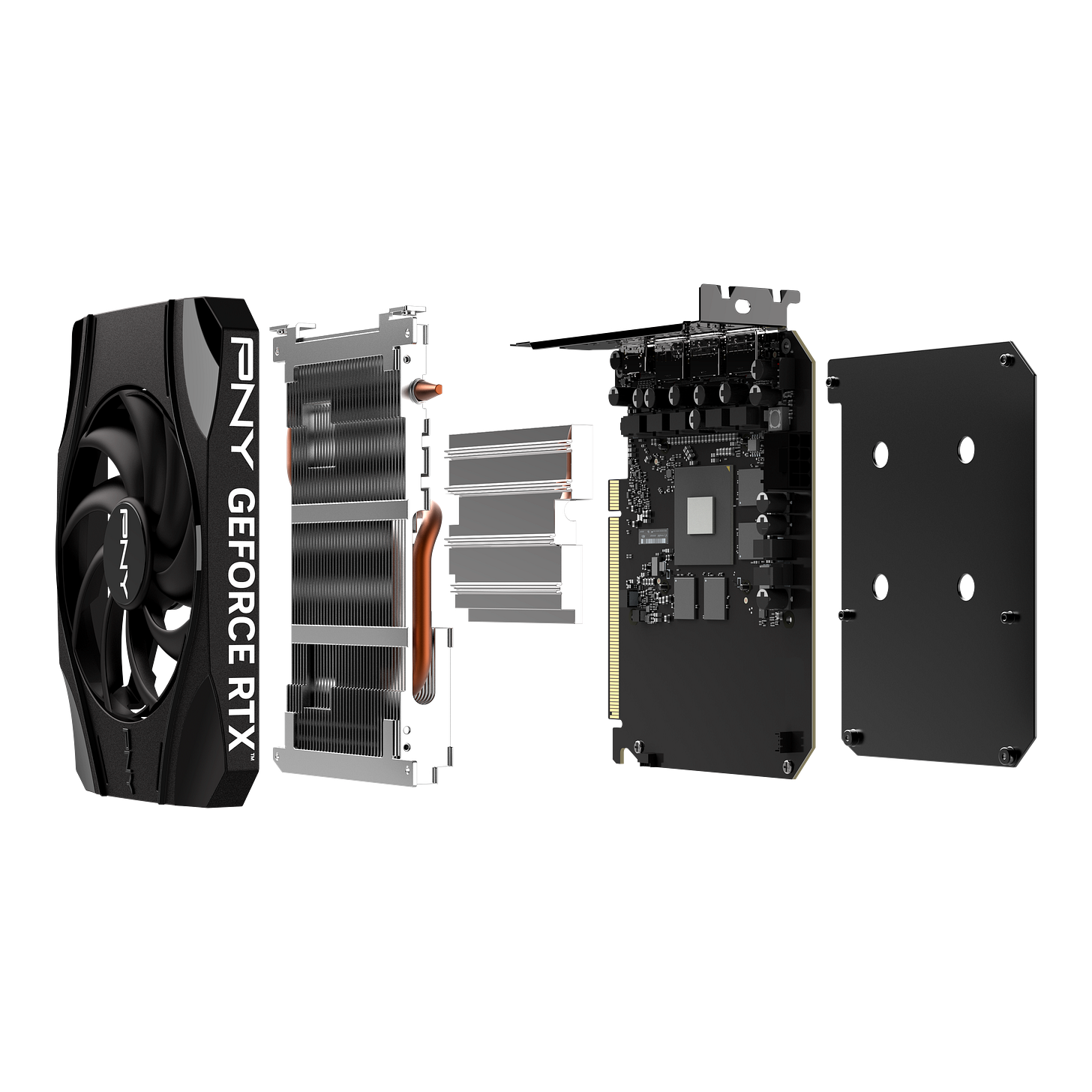

Cooling is handled by a single fan mounted directly above the GPU. It pulls air across the card’s surface and helps move heat away from the chip during use. A single fan doesn’t spread heat as widely as larger coolers, and depending on the workload, it can get a bit louder when it ramps up, especially compared to cards with two or three fans where the load gets shared. That said, the design still matches the lower power draw of the card, and the compact size helps it slip into tighter cases where space is limited. The fan adjusts speed automatically based on temperature, so it stays quieter when the load is light and only spins up when needed.

At just under 147 millimeters in length, the card is one of the most compact options in this generation. That makes it easier to fit into small form factor builds or upgrade older machines that don’t have much space to spare.

Software and Warranty

PNY includes its VelocityX software for fan controls, performance tweaks, and system monitoring. It gives you a way to adjust how the card runs without needing to install separate tools from other vendors. There’s no RGB on this single-fan model, but the software still covers all the basics you’d want if you like keeping track of temps or want to adjust how aggressive the fan curve is.

You also get a 3-year limited warranty with this model. You’ll just need to register it with PNY after purchase. That coverage helps if you're planning to use the card long-term and want some peace of mind in case anything goes wrong down the line.

Building and Everyday Use

The PNY RTX 5050 8 GB Single Fan version is made for smaller builds that still want access to modern features. It fits into tight cases and runs well with lower-wattage setups. This card focuses more on staying compact and energy-efficient than chasing high performance. It’s a match for users who want updated graphics features without spending much or making room for larger parts. For everyday gaming and lighter creative use, it gets the job done without pulling too much power or space.

Game Performance Expectations

This card was built with 1080p gaming in mind. That’s where it handles things best, particularly in games that aren’t too demanding or that support DLSS 4. DLSS helps boost frame rates by using AI to create in-between frames, which gives you a smoother experience without needing more raw power. Most current games will run fine with medium to high settings, depending on how well they’re optimized.

In newer titles with heavier effects or large textures, you’ll probably need to turn a few settings down to keep things closer to 60 frames per second. Memory can also start to hold the card back, the 8 GB of GDDR6 is starting to feel tight, and some games already push past that limit, especially when higher quality settings are turned on.

At 1440p, this card starts to fall behind. You can still run older games or less demanding ones at that resolution in certain cases, but newer releases will struggle unless settings are scaled down. It's not built for 4K or high frame rate competitive gaming, but if you're sticking to 1080p and don’t mind adjusting a few sliders, it still holds up. Reflex 2 support also helps reduce input lag, which is nice in fast-paced games where reaction time matters.

Content Creation with NVIDIA Studio

The RTX 5050 works with the NVIDIA Studio platform, so it can support creative tools like video editors, photo apps, and simple 3D workflows. The fifth-generation Tensor Cores give it a bit more speed when working with AI effects, and the updated ray tracing cores help improve real-time lighting in supported software.

That said, this is still a budget card, and it shows in heavier creative workloads. You can edit short videos, work on photo projects, or do light 3D previews, but longer timelines or larger files may push it near its limits. The GDDR6 memory and lower CUDA core count mean it won’t match higher-tier cards in rendering speed or fluid previews, but for light work, it’s usable.

It also supports NVIDIA Broadcast features like virtual backgrounds and noise removal, which are handy for streamers or anyone recording content at home without extra gear.

System Power and Slot Requirements

The RTX 5050 draws up to 130 watts, which keeps things simple when building or upgrading. It connects with a single 8-pin power cable. Some budget cards skip the 8-pin entirely and pull all their power through the motherboard slot, but this one needs the extra cable. PNY lists a 550-watt minimum for the power supply, so make sure your system is ready for that before installing.

The card uses the PCIe 5.0 standard and connects through 8 lanes, rather than the usual 16. It still fits into regular PCIe slots and works just fine with PCIe 4.0 and 3.0 boards too. The smaller lane count helps with space on compact motherboards and doesn’t affect general performance at this level.

Build Potential and Display Output

This single-fan version stays small and easy to fit into compact cases. It measures just under 147 millimeters in length and uses a two-slot layout. That keeps it compatible with smaller systems and prebuilt machines where space is limited.

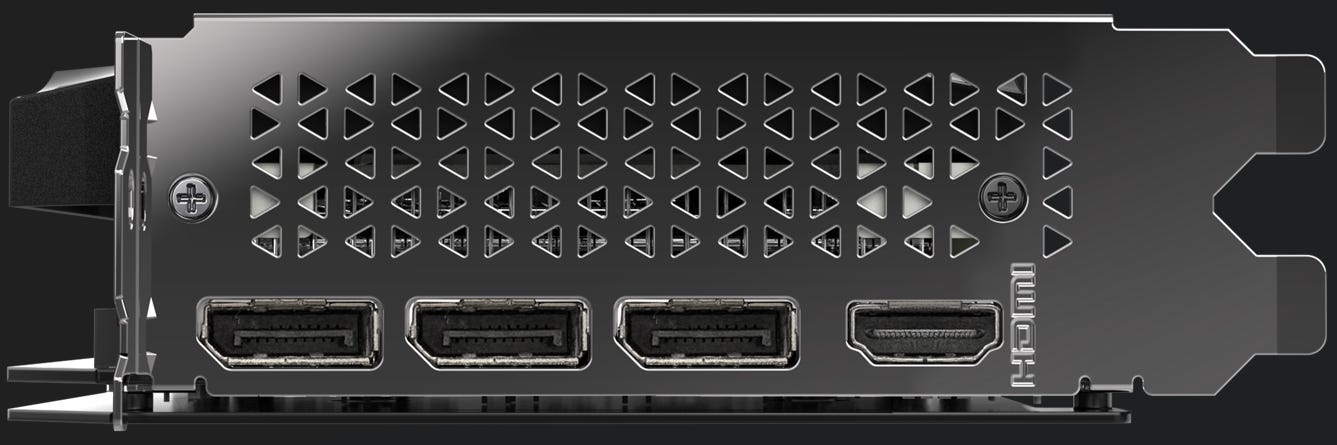

It comes with three DisplayPort 2.1 outputs and one HDMI 2.1 port, so you’re covered for most modern monitors and multi-screen setups. The card supports up to four displays at once and handles high refresh rates at 1080p and 1440p without a problem.

This version trades cooling headroom for a more compact footprint. You don’t get the thermal cushion of dual or triple-fan designs, but you do get a card that’s easier to work into smaller builds without having to worry about extra space or airflow.

Comparing with AMD RX 9060 XT

A natural comparison for the RTX 5050 is the AMD Radeon RX 9060 XT (8 GB). Both are entry-level cards in their generation, built for 1080p gaming with modern display and AI features. They sit close in specs but land in different spots when it comes to performance, cooling, and long-term headroom. The RX 9060 XT (8 GB) has an MSRP of $299 for reference, which is about $50 more than the 5050.

What Sets Them Apart

The RX 9060 XT runs at higher clock speeds out of the box, with a boost up to 3130 MHz. The RTX 5050 tops out at 2572 MHz. AMD also includes 2048 stream processors and 64 AI accelerators, while the RTX 5050 brings 2560 CUDA cores and NVIDIA’s DLSS 4. DLSS can help in supported games, while AMD’s FSR 4 works in a broader set of titles and doesn’t rely on special hardware. The boost clock on the RX 9060 XT is about 22 percent higher than the 5050, which gives it more room to push frames when the load ramps up.

At 1080p, both cards hold up in lighter games, but the RX 9060 XT has more room when effects and textures get heavier. It tends to stay smoother without needing as much reconstruction. The RTX 5050 handles games well when DLSS is active but starts to feel the strain in newer releases that use a lot of visual detail.

Both cards come with 8 GB of GDDR6 on a 128-bit memory path. AMD adds 32 MB of Infinity Cache to help with traffic in busy scenes, and that extra buffer can take some pressure off memory bandwidth in more demanding situations. The RX 9060 XT is also available in a 16 GB version, which adds more headroom if you’re working with high-res textures or larger workloads.

Cooling and Form Factor

The RTX 5050 is made to fit smaller builds. It uses a single fan and a compact form factor. That helps with airflow in tight spaces, but it also means more heat and fan noise during longer sessions. The RX 9060 XT cards use dual-fan or triple-fan coolers and wider heatsinks. They tend to stay cooler and quieter but take up more room.

Both cards use a single 8-pin connector. The RX 9060 XT has a listed board power of 150 watts and recommends a 450-watt power supply. The RTX 5050 draws a bit less at 130 watts and a 550-watt power supply by PNY.

Upscaling and Extras

DLSS 4 and FSR 4 are both built to boost frame rates through AI-based scaling. DLSS relies on dedicated hardware and usually looks better in supported titles. FSR runs on more games but varies more in how it performs. Both get the job done for stretching frame rates when settings are turned up.

The RTX 5050 also includes NVIDIA Reflex 2, which helps reduce input delay. AMD counters with Radeon Anti-Lag 2 and Fluid Motion Frames for smoother visuals and quicker response times. Both cards support AV1 encoding and decoding, HDMI 2.1, and DisplayPort 2.1 outputs. That keeps them compatible with high refresh monitors and modern multi-screen setups.

Conclusion

The PNY RTX 5050 8 GB Single Fan GPU brings updated architecture, DLSS 4 support, and a compact design to entry-level builds that don’t have room for larger cards. It holds up in 1080p gaming with adjusted settings and runs most lighter workloads without much trouble. The single-fan cooler keeps things simple, though it trades off some thermal headroom and quiet operation during longer sessions. With 8 GB of GDDR6 and limited bandwidth, it’s not built for heavier tasks, but for budget systems focused on everyday gaming, media use, or creative tools with modest demands, it does what it needs to and has it’s place.

1. PNY RTX 5050 Single Fan Product Page

2. PNY VelocityX Software

3. NVIDIA Blackwell Architecture Overview

4. NVIDIA DLSS 4 Developer Guide

5. NVIDIA Studio Support and Setup

6. PNY Product Registration

7. AMD Spec Reference

You can reach me at alexander.obregon47@gmail.com for sponsorships, collaboration requests, or other professional opportunities.

Share Alexander Obregon's Substack

When you search for a PNY RTX 5060 graphics card, you’ll probably notice there’s more than one version. They all run on the same core specs, but the size, cooling, and clock speeds change depending on which one you’re looking at.

We’re going to walk through all four PNY GeForce RTX 5060 8GB models and break down what makes them different. If you’re upgrading an older system, building something new, or just trying to figure out what the differences actually mean, this should help clear things up. I’ll break down what each version is built to handle, what the numbers on the spec sheet mean in simple terms, and how those design choices affect what you get out of the card in a regular PC. For reference, the MSRP for the RTX 5060 is $299, but actual pricing can vary depending on availability, region and what features the manufacturer adds to their version.

If you’re looking for more detail on any one of these cards, I’ve made a separate article for each model that breaks down the full specs and explains what everything means without assuming you already know the technical side. You’ll find links at the end of each section if you want to learn more about a specific version.

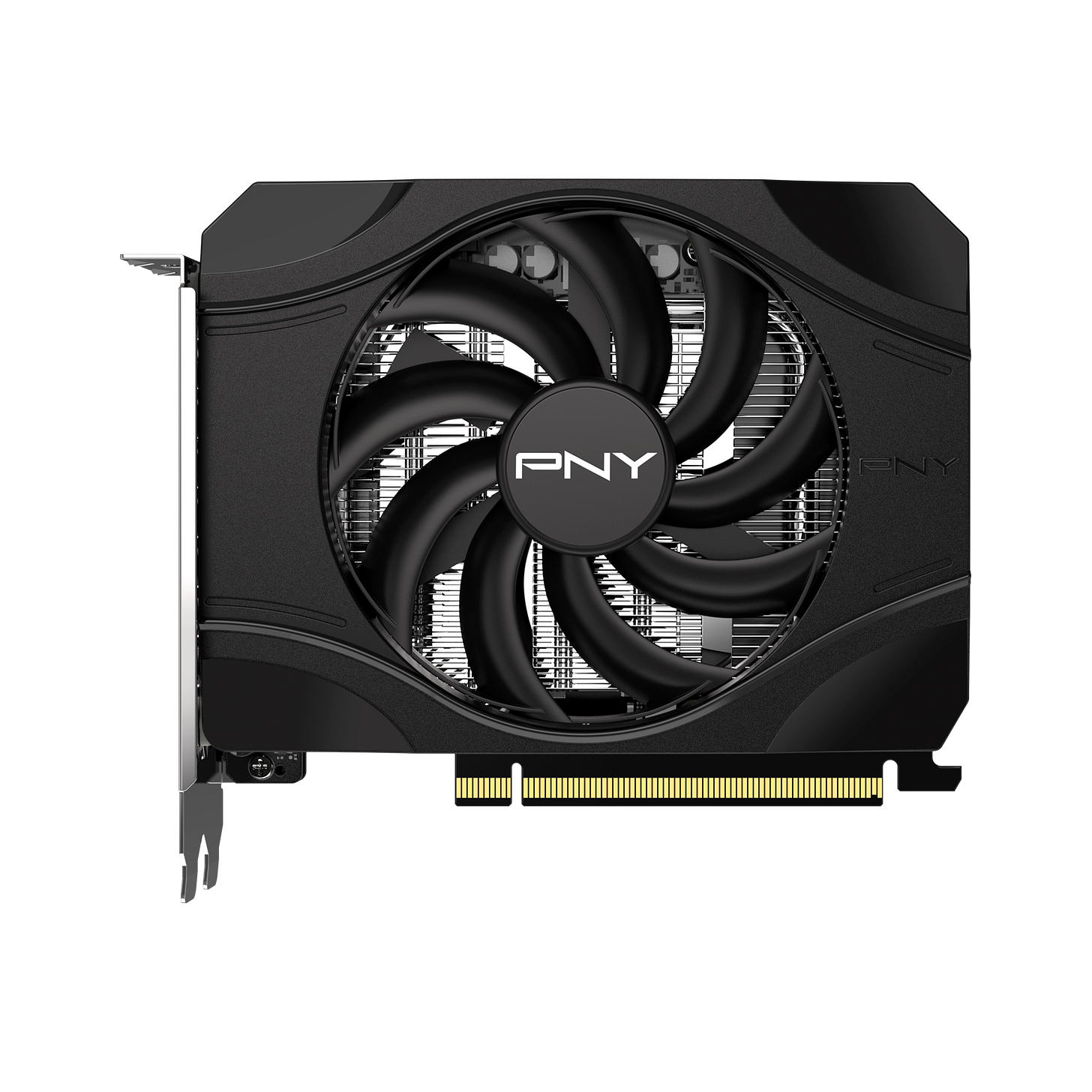

PNY RTX 5060 8GB Single-Fan

This is the most compact model in the lineup. It's only 146.7 mm long, which means it fits comfortably into smaller cases like mini‑ITX or compact towers. It runs a single cooling fan over a tight heatsink, which is enough for the 145 W this card pulls, but it has less room to push heat around compared to the others.

The boost clock on this version tops out at 2497 MHz, which matches NVIDIA’s standard specification. That number tells you how fast the GPU can go when it’s under load, but it doesn’t stay locked there. The real speed can fluctuate depending on heat and power. With just one fan, this version works fine at stock speeds, but it doesn’t have much thermal breathing room.

• Pros: Takes up very little space, works well in small cases, and stays close to the base spec. Good for basic builds or light gaming in tight spaces.

• Cons: Cooling is limited, so it may run louder under load compared to larger models, and there’s no extra headroom for higher clocks.

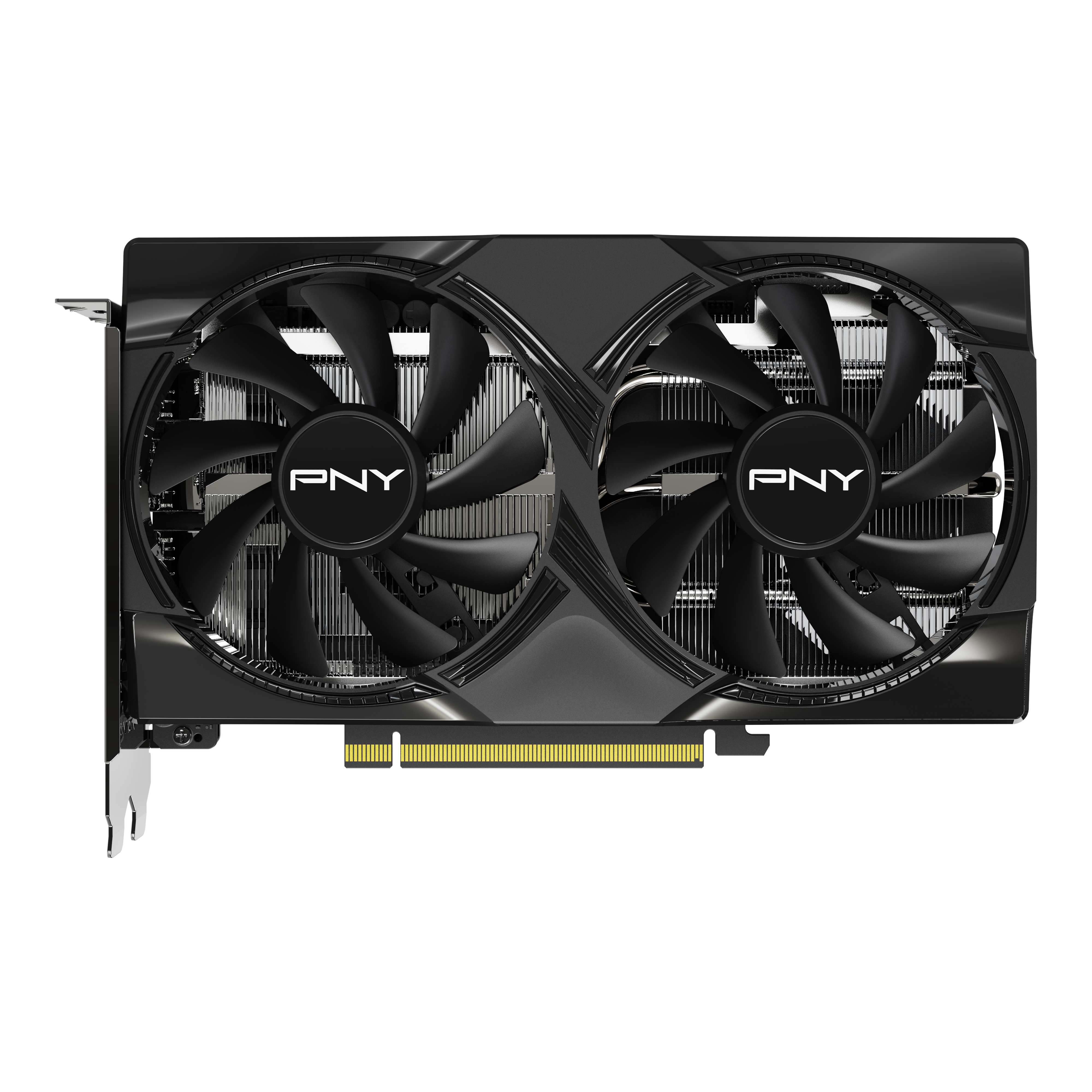

PNY RTX 5060 8GB Dual-Fan (Standard)

The dual-fan version is a step up in size, stretching out to 200 mm long. With two fans and a larger heatsink, it moves air more efficiently and spreads out heat better. That means it usually runs cooler and quieter than the single-fan model, especially when the card is under heavy load.

The clock speed is still 2497 MHz, so you’re not getting a performance bump from frequency, but the improved cooling can help it stay closer to that boost longer during extended gameplay or rendering sessions.

• Pros: Better thermal control, lower fan noise, and still compact enough to fit in most mid‑tower cases. A solid middle-ground choice.

• Cons: Same clock speed as the smaller version, so you don’t get extra performance out of the box.

PNY RTX 5060 8GB Dual-Fan OC

This looks just like the standard dual‑fan model, sharing its 200 mm length and cooler, but the firmware is tuned to run slightly faster. The boost clock is raised to 2535 MHz, which gives you a small bump in potential performance without changing the physical design.

It’s still using two fans, the same two-slot layout, and the same ports and power requirements. You get a little more out of the GPU without needing to overclock it yourself or tweak any settings manually.

• Pros: Same compact size with a factory overclock baked in. No extra setup needed to benefit from the higher clock speed.

• Cons: Only a modest boost over the non-OC version. Cooling is good but doesn’t leave much extra room for manual tuning beyond what it ships with.

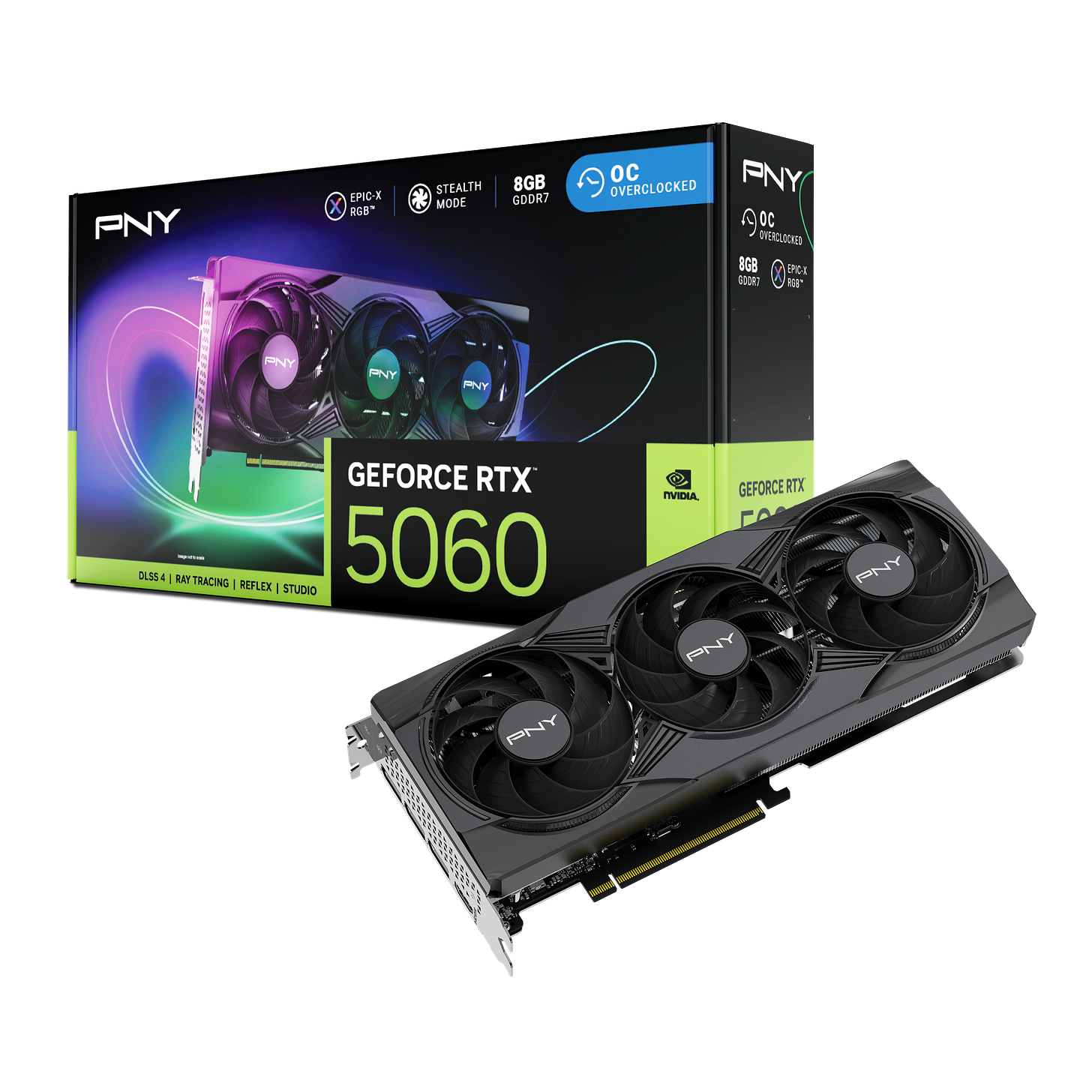

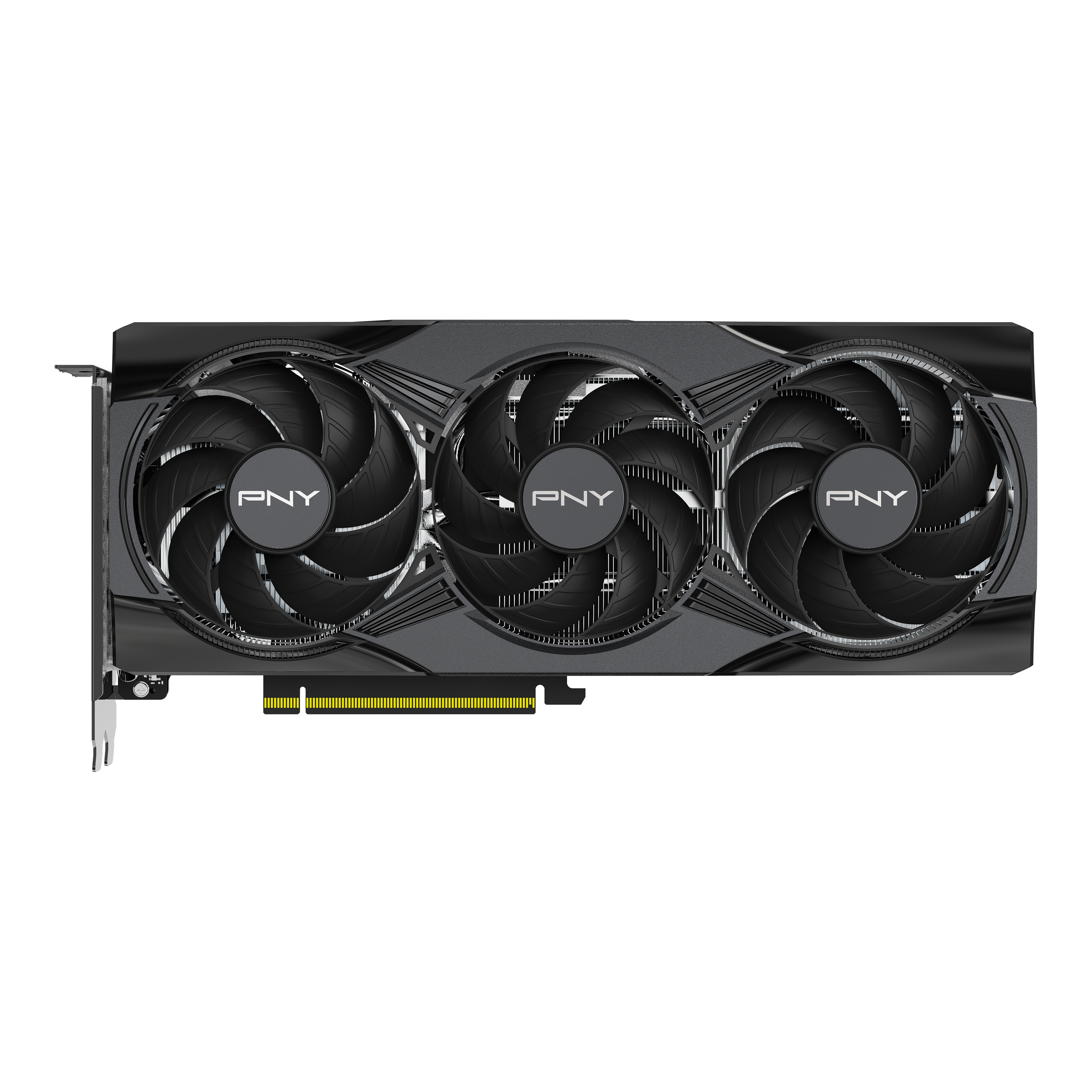

PNY RTX 5060 8GB Triple-Fan ARGB OC

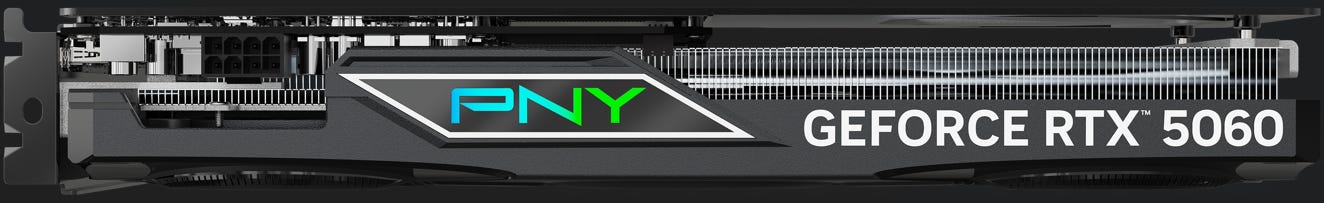

This is the largest and most feature-packed version. At 280 mm long, it takes up more room inside your case and adds a third fan for better airflow. That extra cooling lets PNY set the boost clock higher, topping out at 2580 MHz, which is the fastest of all four models.

This card also comes with a full-length metal backplate. That helps support the card so it doesn’t sag in the case over time and adds vent holes to let trapped heat escape more easily. It also supports ARGB lighting and lets you control the fans and effects through PNY’s VelocityX software.

• Pros: Best performance, most thermal headroom, RGB lighting, and software controls. Built for users who want the most out of the card without tweaking it themselves.

• Cons: It’s long and might not fit in smaller cases. You’re also paying more for features that casual users might not need.

Conclusion

The RTX 5060 lineup from PNY sits in the lower middle of the current GPU range. It’s built for 1080p gaming and general use, and while all four models share the same core specs, the number of fans does affect more than just cooling. Better airflow helps the card hold higher speeds for longer, and in the overclocked versions, the fans help push those speeds a bit higher from the start. That said, all models still come with 8GB of memory, which is somewhat enough for now but won’t stretch far in newer games or heavier tasks as time goes on. It’s a decent mid-step for people who don’t need top-end performance but still want something current that can handle most things at reasonable settings.

• PNY GeForce RTX 5060 8GB Single-Fan (PNY.com)

• PNY GeForce RTX 5060 8GB Dual-Fan (PNY.com)

• PNY GeForce RTX 5060 8GB Dual-Fan OC (PNY.com)

• PNY GeForce RTX 5060 8GB Triple-Fan ARGB OC (PNY.com)

• PNY VelocityX Software

• NVIDIA Blackwell Architecture Overview

• NVIDIA DLSS 4 Developer Guide

• NVIDIA Studio Support and Setup

• PNY Product Registration

You can reach me at alexander.obregon47@gmail.com for sponsorships, collaboration requests, or other professional opportunities.

Share

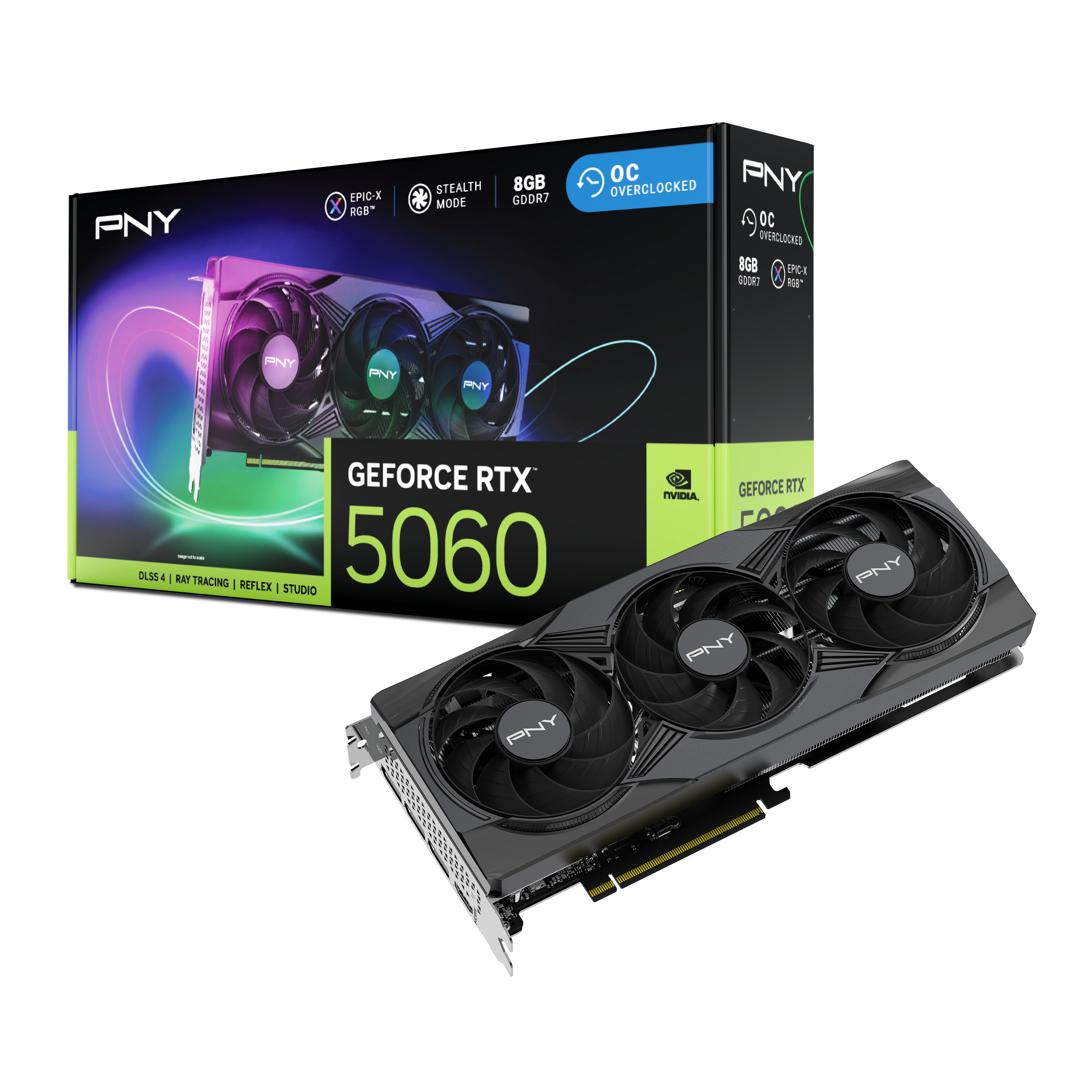

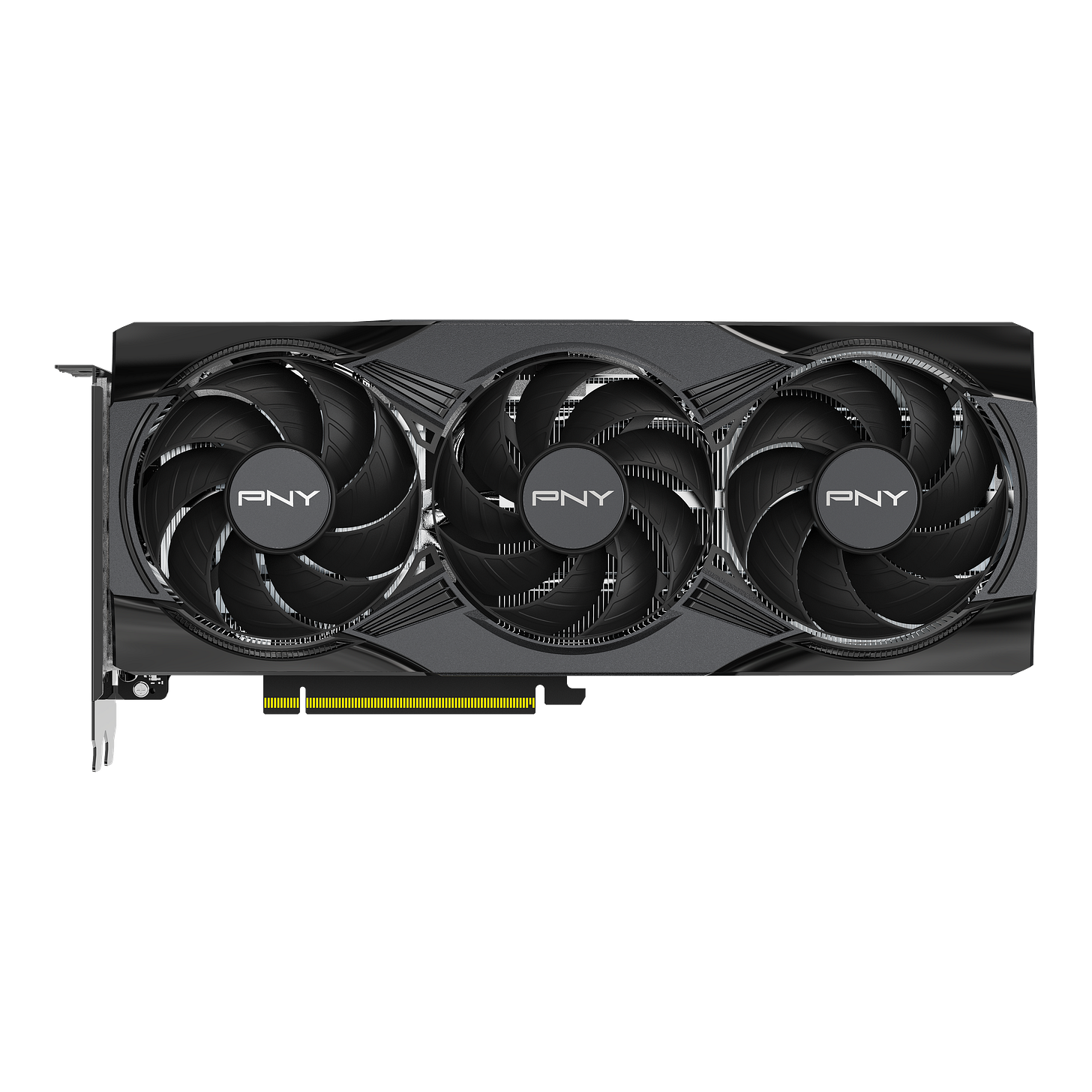

The PNY GeForce RTX 5060 8 GB Overclocked Triple Fan is a budget-friendly graphics card that fits easily into a wide range of computer builds while offering a bit more cooling headroom than the single-fan or dual-fan versions. If you’re not deep into tech or just want a clear explanation of what this card actually does without it being overcomplicated, this guide is for you. We’ll go through the specs one by one and explain what they mean in simple terms. You won’t need to know every technical keyword to follow along. I made this to help anyone learn without feeling overwhelmed, while still being thorough. Price and availability tend to change often with graphics cards, so we won’t be focusing on that here, but the MSRP for the standard model is $299 for reference.

Subscribe now

Hardware Specs and Architecture

This card is based on NVIDIA’s new Blackwell GPU design, which brings updated features and better performance for modern games and apps. The PNY triple fan version keeps things cool and easy to power. Let’s go through what’s on the card and how each piece fits together.

Blackwell Architecture Basics

Blackwell is the next step after NVIDIA’s previous Ada design. One of the main upgrades is a new version of their AI-focused Tensor Cores, now in their fifth generation. These are small parts inside the GPU that handle tasks related to machine learning, including features like DLSS, which helps your games run faster by using AI to fill in extra frames. This version includes special support for lower-precision math (called FP4), which is better suited for those AI features and helps speed them up.

Ray tracing, which adds more realistic lighting and reflections in supported games, also gets a boost. The dedicated cores that handle this effect are now in their fourth generation. They’re better at processing large, complex 3D scenes, particularly when the geometry has lots of detail. This means newer games that use ray tracing will look smoother and run more efficiently than they did on older cards.

Core Counts and Clocks

The RTX 5060 comes with 3,840 CUDA cores. These are the parts of the chip that handle most of the general processing, especially when running games or creative apps. CUDA cores work together in large groups, taking small pieces of a task and running them all at once. The number gives a sense of how much raw computing power the card has.

As for speed, the card runs at a base clock of 2,280 megahertz and can boost up to 2,580 megahertz when needed. That’s a bit more than the non-overclocked version, which tops out at 2,497 megahertz. The difference isn’t huge in real-world use, but it gives the card a little more breathing room during heavier loads or longer sessions. Boost clocks are the faster speeds your card can reach when it’s not running too hot and still has room in its power budget. This boost happens automatically, depending on the current workload and temperature.

Memory and Bandwidth

This card uses 8 gigabytes of GDDR7 memory. That’s the latest generation of graphics memory, and it runs faster than the GDDR6 found in most earlier cards. That speed helps the GPU move textures, geometry data, and visual effects quickly in and out of memory while it’s processing frames. When memory moves faster, the card has an easier time keeping up with everything it needs to show on screen. This memory is called VRAM, which stands for video RAM. It’s where the graphics card stores things like game assets, background textures, lighting details, and other visual data while it’s working. The more VRAM a card has, the more it can keep ready to go without needing to pull from slower system memory. That makes a difference when scenes get more complex or when settings are turned up.

The RTX 5060 connects to its memory over a 128-bit path. Think of that as the width of the lane the data travels through. A wider lane and faster memory together give the card a total memory bandwidth of 448 gigabytes per second. That’s the amount of data it can move every second, and it helps reduce wait times when large amounts of visual content need to be processed all at once.

While 8 GB still works for common tasks, but it’s behind where mid-range cards are trending. Many newer mid-range cards are coming with 12 or even 16 GB, and more games and software are beginning to take advantage of that extra room. The RTX 5060 doesn’t offer other memory options, so if you’re planning to stretch this card over several years or work with high-memory tasks later on, that’s something to keep in mind. But for now, the 8 GB here is fast and can handle basic workloads as long as memory use stays within that limit.

Power and Cooling Design

This card uses up to 145 watts when it’s under full load, which puts it in a comfortable range for a mid-range GPU. That amount of power draw means most modern power supplies can handle it without any trouble. It connects with a single 8-pin power cable, which is one of the most common plugs found in gaming power supplies, so there’s usually no need to change anything to get it running.

Cooling is handled by three fans mounted directly on the card. They work together to push air across a larger heatsink, which spreads heat out across a metal surface, helping it cool down more evenly before the air exits the card. The fans adjust their speed based on temperature, and having three of them helps keep noise lower since each one doesn’t have to work as hard to manage heat.

With three fans working together, the card stays cooler during long gaming sessions or heavier creative work. Heat spreads out across a larger heatsink, and the extra airflow helps keep temperatures in check. That cooling gives the GPU more room to stay at higher speeds without throttling. It’s a bigger card, though, measuring around 280 millimeters in length, so you’ll want to make sure your case has enough space if it’s on the smaller side.

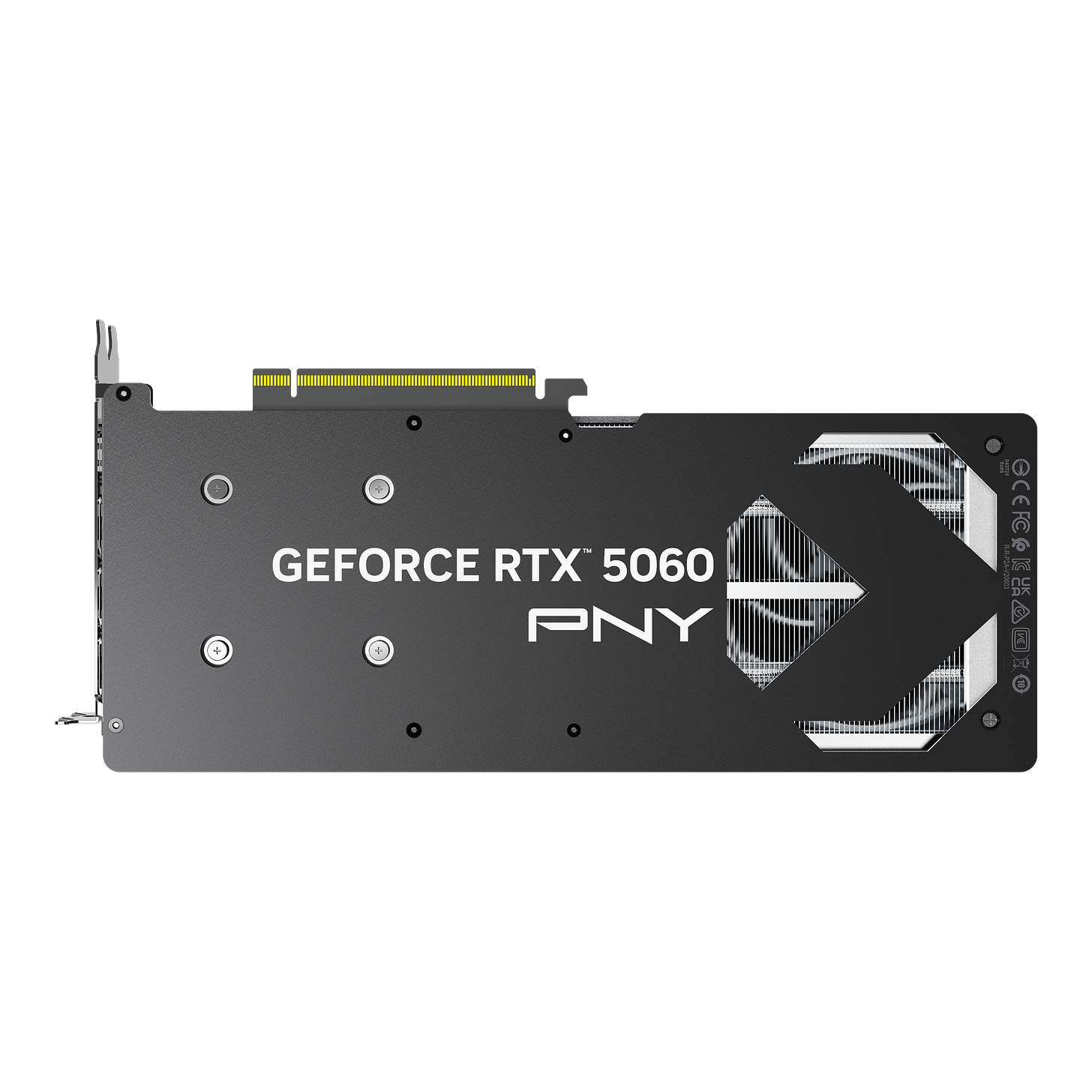

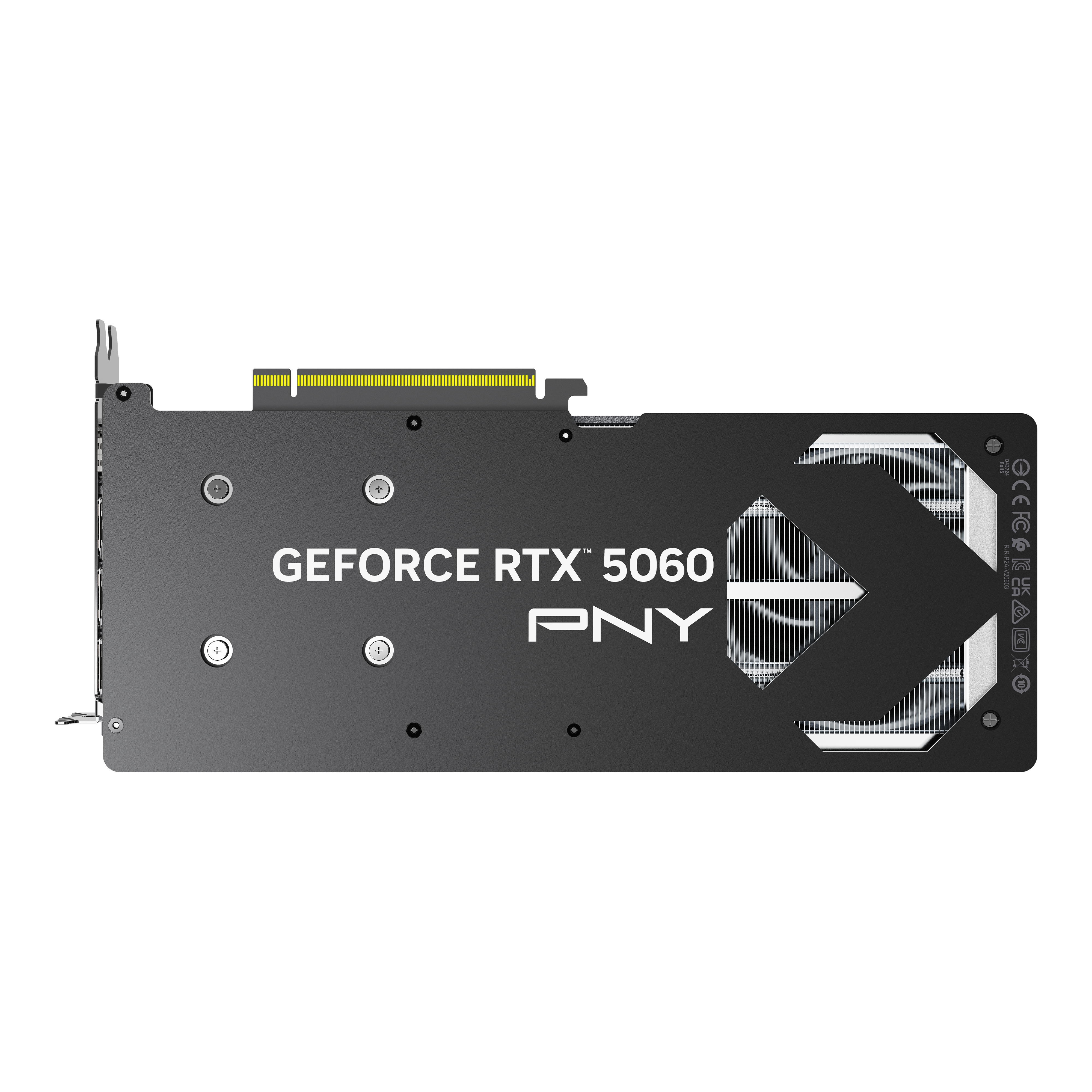

PNY’s design includes a full metal backplate, which helps keep the card sturdy and cuts down on sag over time. The backplate has built-in vents that give the heatsink a little more room to breathe, adding a bit of extra passive cooling when airflow slows down.

Software and Warranty

PNY includes its VelocityX software with the card, which gives you a simple way to adjust fan speeds, monitor temperatures, and fine-tune performance. It’s helpful if you want to control how the card behaves without needing to install third-party tools. On top of that, this model comes with a 3-year limited warranty through PNY, which gives you a bit of extra peace of mind if you’re planning to keep the card in your system for a while, just remember to register. On this triple-fan model, it also lets you control the ARGB lighting built into the card.

Building and Everyday Use

The PNY RTX 5060 8 GB Overclocked Triple Fan version is built to handle common tasks that most PC users care about, whether that’s gaming, light content creation, or building a system that stays cool without being oversized. It leans toward users who want something modern but don’t need high-end performance or large-scale workloads. Everything on the card is geared toward staying efficient, quiet, and reasonably fast for its class and price.

Game Performance Expectations

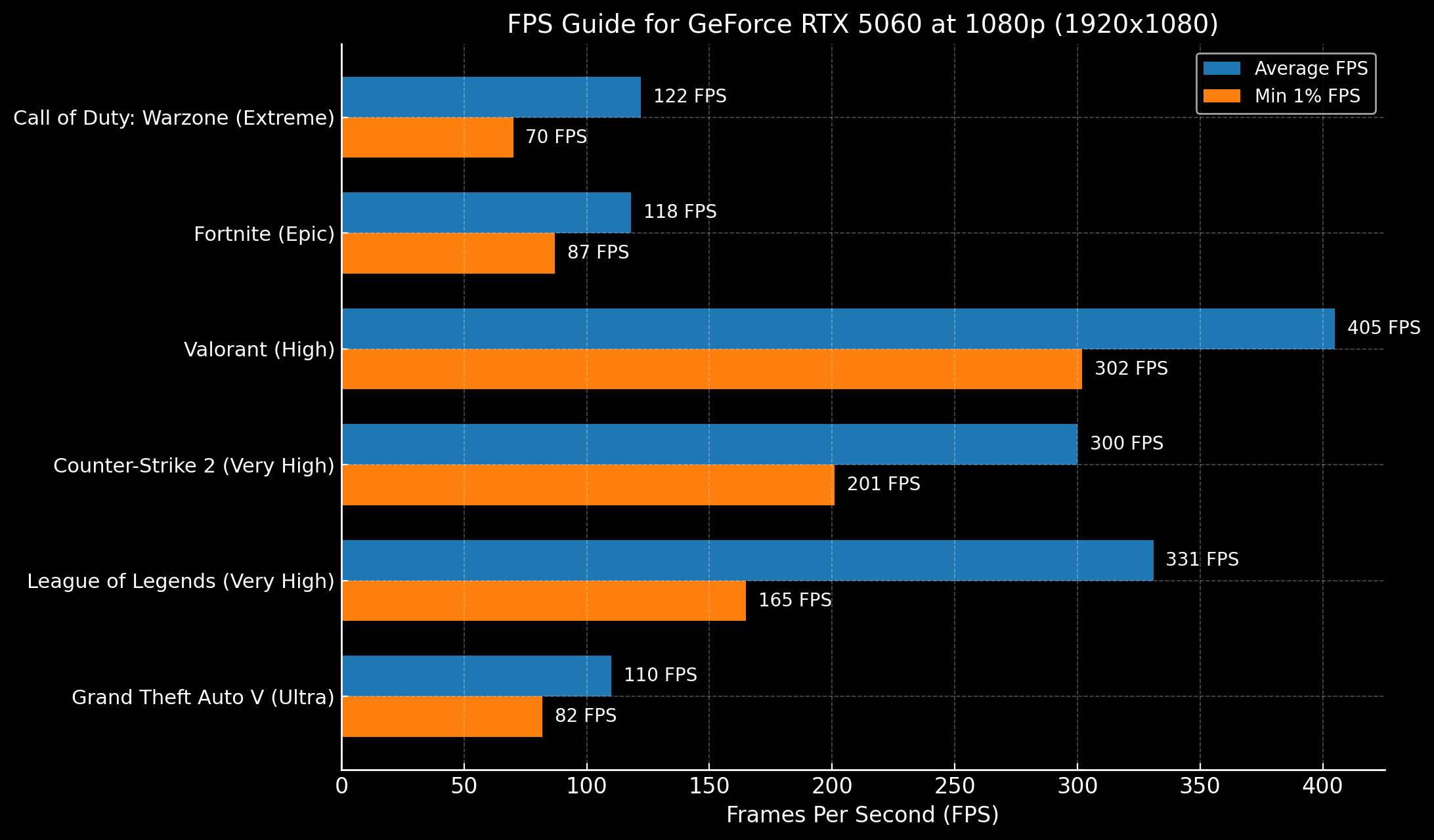

This card is made for 1080p gaming and handles that resolution well, especially with the small bump in boost speed from the factory overclock. Most modern games will run at high settings and still give smooth frame rates, with help from DLSS 4. DLSS stands for Deep Learning Super Sampling. It’s a feature that uses AI to fill in extra frames between the ones your system actually draws. That lets you get more frames per second without needing as much raw power from the card itself. Some newer titles with higher-than-average demands can push the card to its limits, particularly when they’re built with ultra-detailed environments or larger memory needs. In those cases, turning a few settings down can help keep the experience steady without losing too much visual quality.

At 1440p, the card can still run a fair number of games, but this is where its limits start to show. Some settings may need to be turned down, depending on how demanding the game is. Titles with high-resolution textures, heavy effects, or larger environments can get close to the 8 GB memory cap, which may lead to lower frame rates or short stutters during play. That kind of load is less of an issue at 1080p, where the card has more breathing room. Older games or ones that don’t rely on the latest graphics features continue to run well without much trouble.

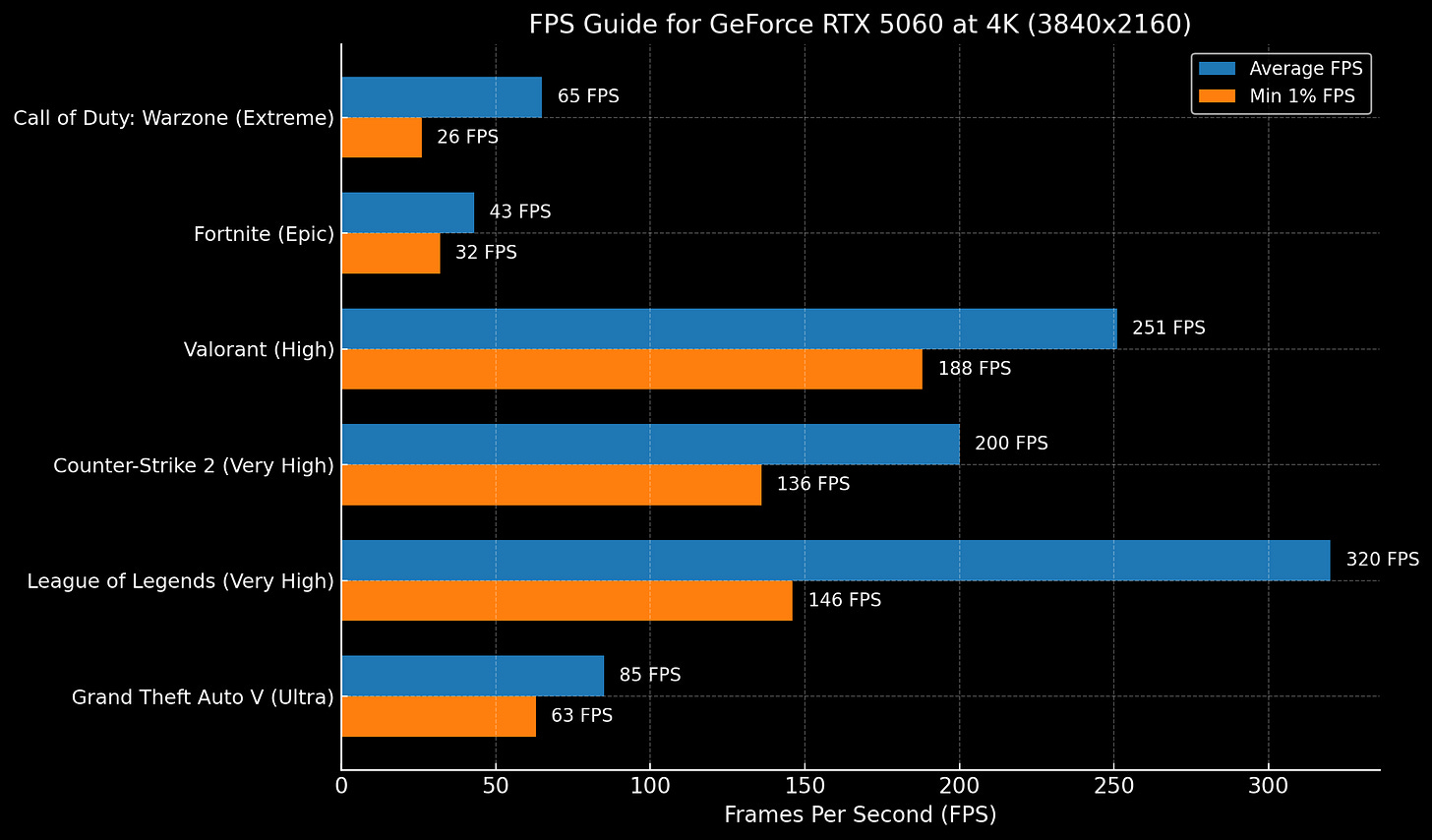

This card isn’t built for 4K or very high frame rates in demanding games, but it performs decently for players who want a steady experience at 1080p. You can expect a smooth 60 frames per second in many titles, with some going higher depending on the game and settings. With Reflex 2 helping cut down input delay, games that rely on quick reactions still feel responsive and sharp.

Content Creation with NVIDIA Studio

The RTX 5060 works with the NVIDIA Studio platform, which brings added support for creative software. That includes tools for editing photos, cutting videos, doing basic 3D modeling, and working with AI-based filters. The fifth-generation Tensor Cores improve the speed of effects that rely on AI, like background removal or voice filters in real-time video. The newer ray tracing cores also help speed up lighting previews in apps that support it.

For users doing casual to moderate creative work, the card holds up well. The GDDR7 memory is quick enough to handle high-resolution video timelines and preview changes without long delays. It’s a budget-friendly option that makes newer tools more accessible without jumping to a higher-end card. And with the triple-fan cooler, the card handles heavier loads more comfortably than the single-fan or dual-fan versions. It’s less likely to hit thermal limits during longer rendering sessions or demanding video work.

The card also supports NVIDIA Broadcast, which gives you extra tools like noise removal, virtual backgrounds, and camera framing. These can be helpful if you’re doing live streams or recording content from home without needing extra gear.

System Power and Slot Requirements

Power requirements for the RTX 5060 are fairly modest, which makes installation less stressful for people building or upgrading a system. It draws up to 145 watts and runs off a single 8-pin power cable, which is standard on most gaming power supplies. That keeps things simple and avoids needing extra adapters or special plugs.

The card fits into a regular PCIe slot and uses the PCIe 5.0 standard, though it’s still fully compatible with older PCIe 4.0 or 3.0 slots. It uses 8 PCIe lanes instead of the usual 16. That just means it has fewer data paths connecting it to the rest of your system, but for a mid-range card like this, it’s still fast enough and doesn’t affect real-world performance. The smaller lane count helps save space on compact motherboards and leaves room for other expansion cards.

You don’t need a high-wattage supply to run this card, and most systems with at least a 550-watt power supply should be fine. That gives it flexibility for prebuilt systems or upgrades where you don’t want to replace too many parts at once.

Build Potential and Display Output

This version of the RTX 5060 stays compact while having good cooling performance. It measures about 280 millimeters in length and takes up two slots. Compared to the single-fan and dual-fan versions, this one runs cooler under load but it’s longer, so small cases may be tight. If it fits, you get more cooling headroom.

It comes with three DisplayPort 2.1 outputs and one HDMI 2.1 port, which gives you plenty of options if you’re running multiple monitors or connecting to a capture setup.

If space is less of a concern, this version offers better cooling while still being fairly manageable for a triple-fan card. It’s a solid option if you want lower temps without going to something oversized or bulky.

Comparing with AMD RX 9060 XT

The closest competitor to the RTX 5060 is the AMD RX 9060 XT. Both cards sit around the $300 range and target the same type of use, which is 1080p gaming, support for modern features, and enough performance to handle some creative workloads without going overboard.

What Sets Them Apart

At 1080p, both cards deliver good results, and the difference in game performance depends a lot on how the game is built. The RTX 5060 uses DLSS 4, which helps boost frame rates by using AI to generate extra frames. AMD cards use FSR, a similar tool for upscaling, though it works differently. In many cases, performance will feel about the same unless you’re looking closely at numbers.

The RX 9060 XT can pull ahead at 1440p, mostly because it has a wider memory bus and is available in both 8 GB and 16 GB models. Games that rely on higher memory capacity or that stream a lot of data while you play tend to benefit from that extra headroom. It also has an edge in some non-gaming tasks like 3D rendering or working with larger video timelines, where the extra memory and raw performance come into play. On the RTX 5060, you’re limited to 8 GB, which can start to feel a bit tight in performance.

Cooling and Memory Choices

Many RX 9060 XT models come with dual or triple-fan coolers and larger heatsinks, which help keep temperatures lower and noise down during long sessions. It currently doesn’t come in a single-fan version. The RTX 5060 Triple Fan model offers the most thermal headroom of the three, staying quieter under load and holding performance more consistently during longer sessions. Its triple-fan setup spreads heat well across the heatsink and holds up nicely in cooling, keeping noise low and performance right in line with the triple-fan RX 9060 XT.

Conclusion

The PNY RTX 5060 8 GB Overclocked Triple Fan GPU brings together updated architecture, faster memory, and practical design choices in a compact card that fits where larger models may not. It runs cool enough under basic to moderate use, handles modern games well at 1080p, and supports creative tools with features that speed up AI and video workflows. With 8 GB of VRAM, it’s a card built more for everyday needs than for pushing limits, but the hardware holds up well for its size and price.

If you want to see how this version stacks up against the rest of the lineup, I’ve got a full comparison of all four PNY RTX 5060 8 GB models:

1. PNY RTX 5060 Overclocked Triple Fan Product Page

2. PNY VelocityX Software

3. NVIDIA Blackwell Architecture Overview

4. NVIDIA DLSS 4 Developer Guide

5. NVIDIA Studio Support and Setup

6. PNY Product Registration

You can reach me at alexander.obregon47@gmail.com for sponsorships, collaboration requests, or other professional opportunities.

Share Alexander Obregon's Substack

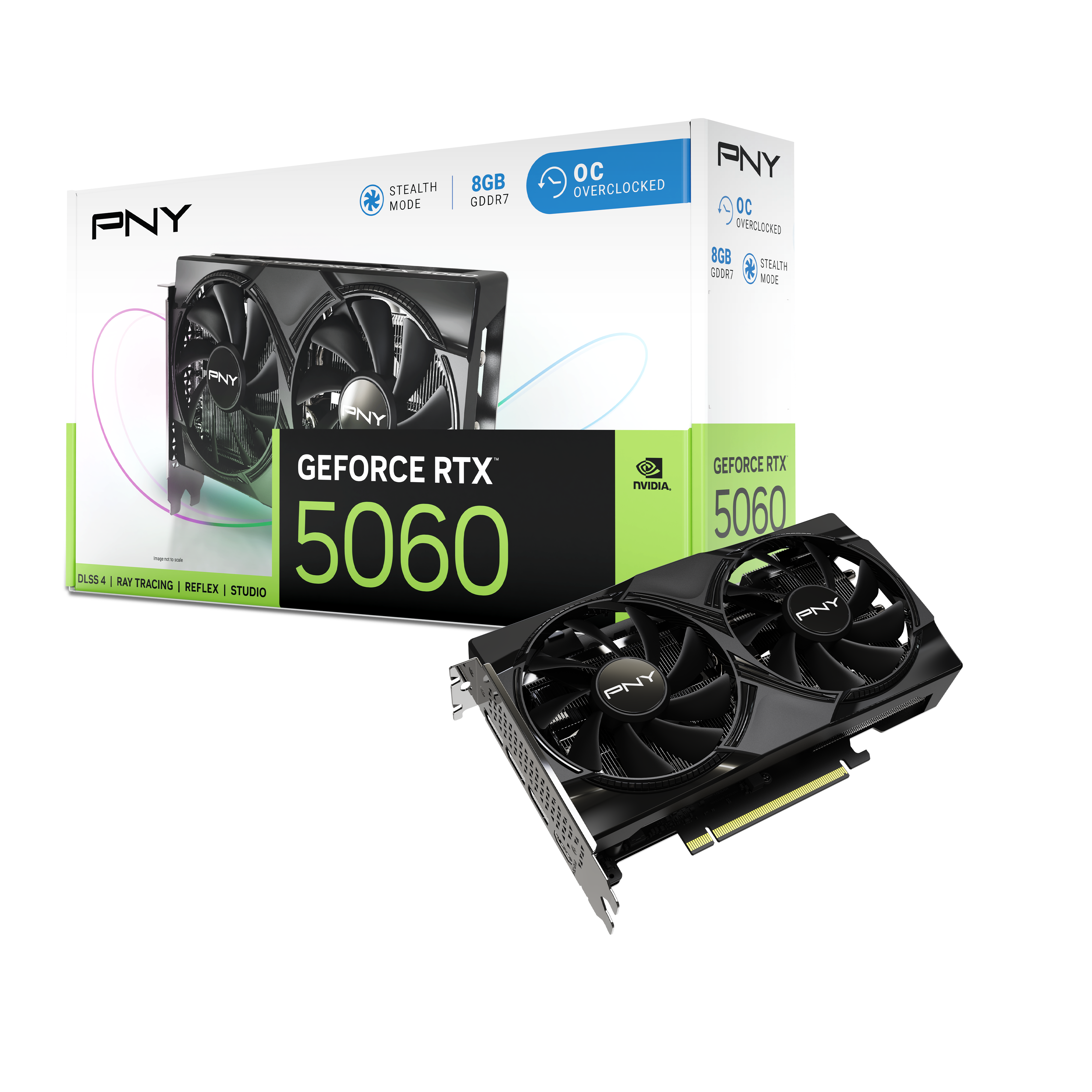

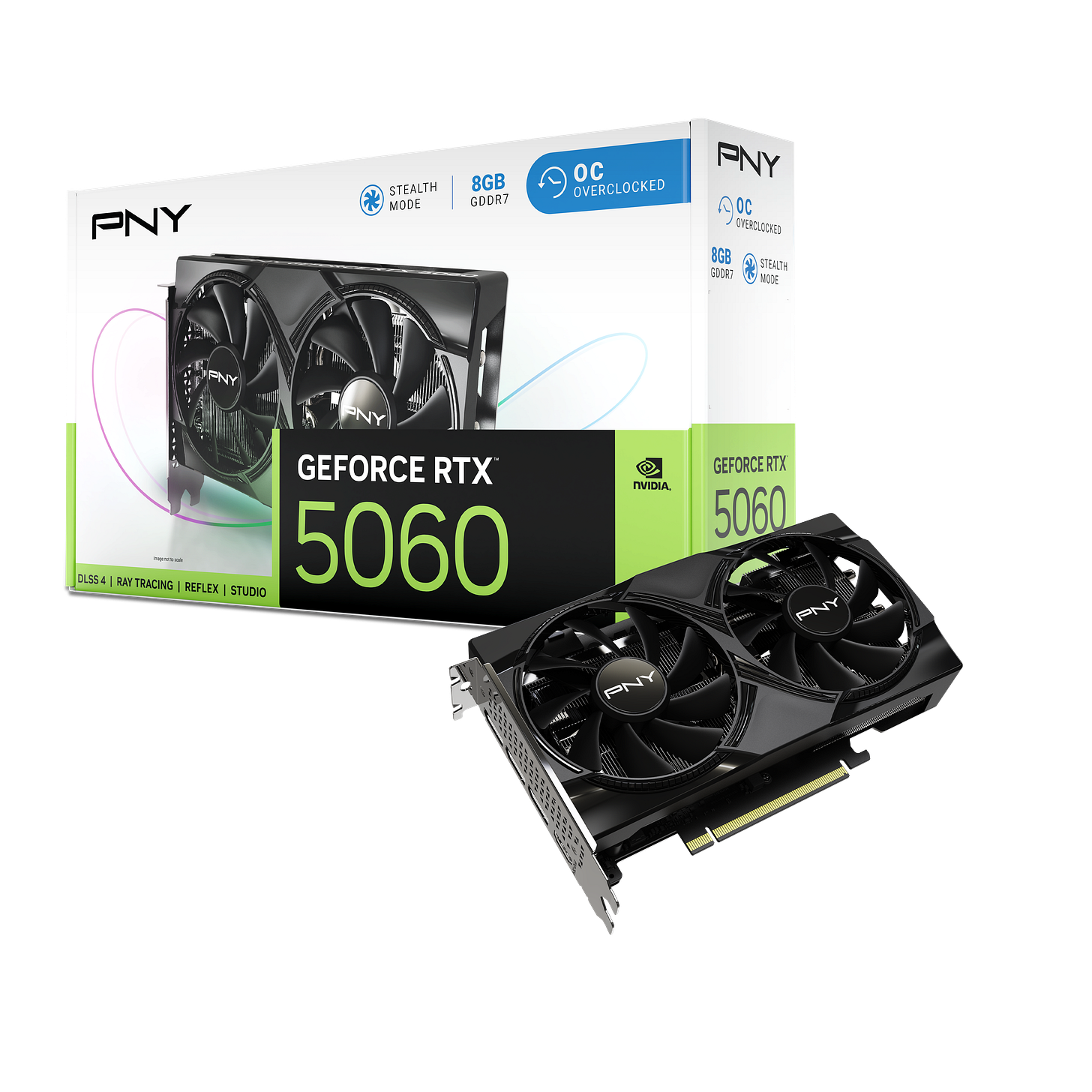

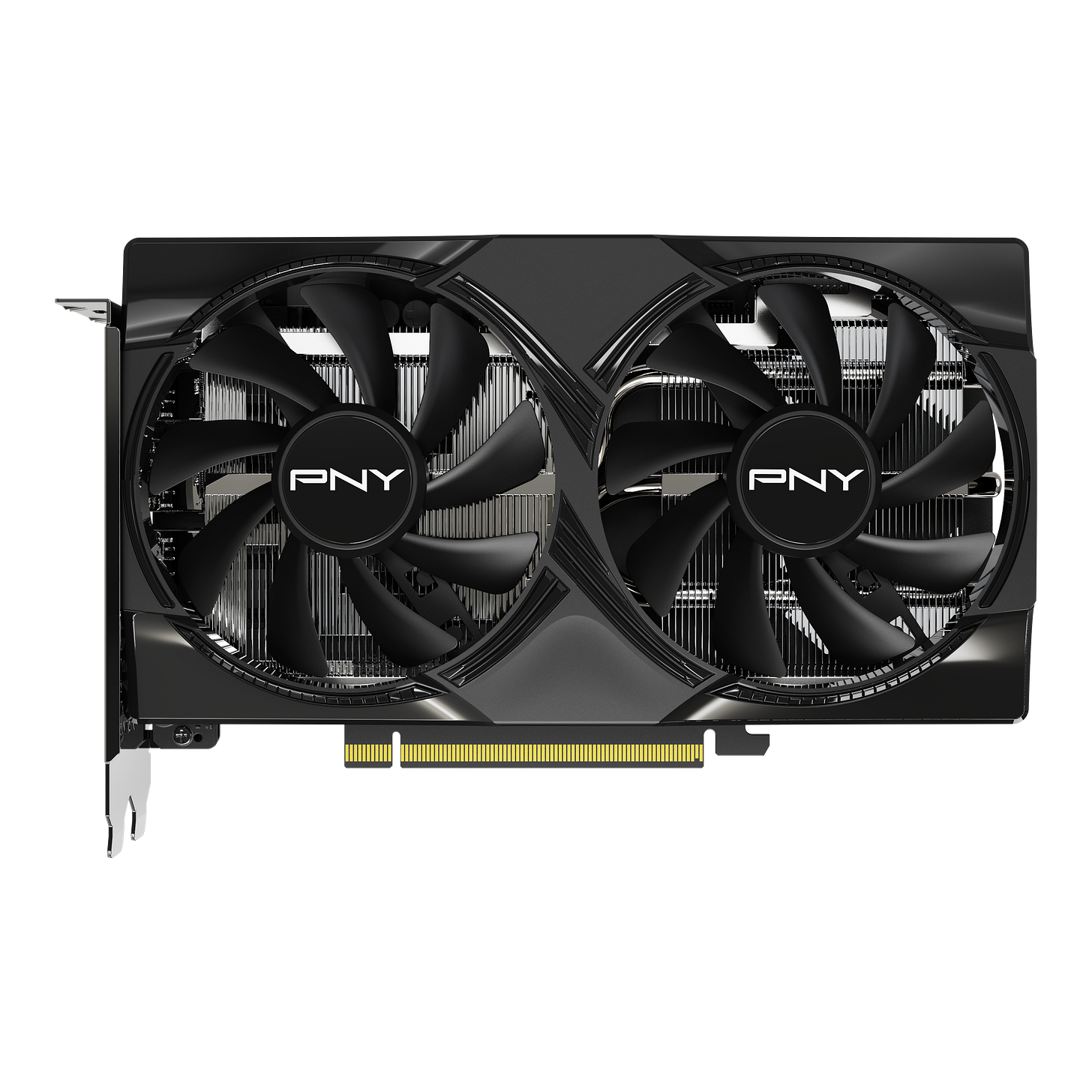

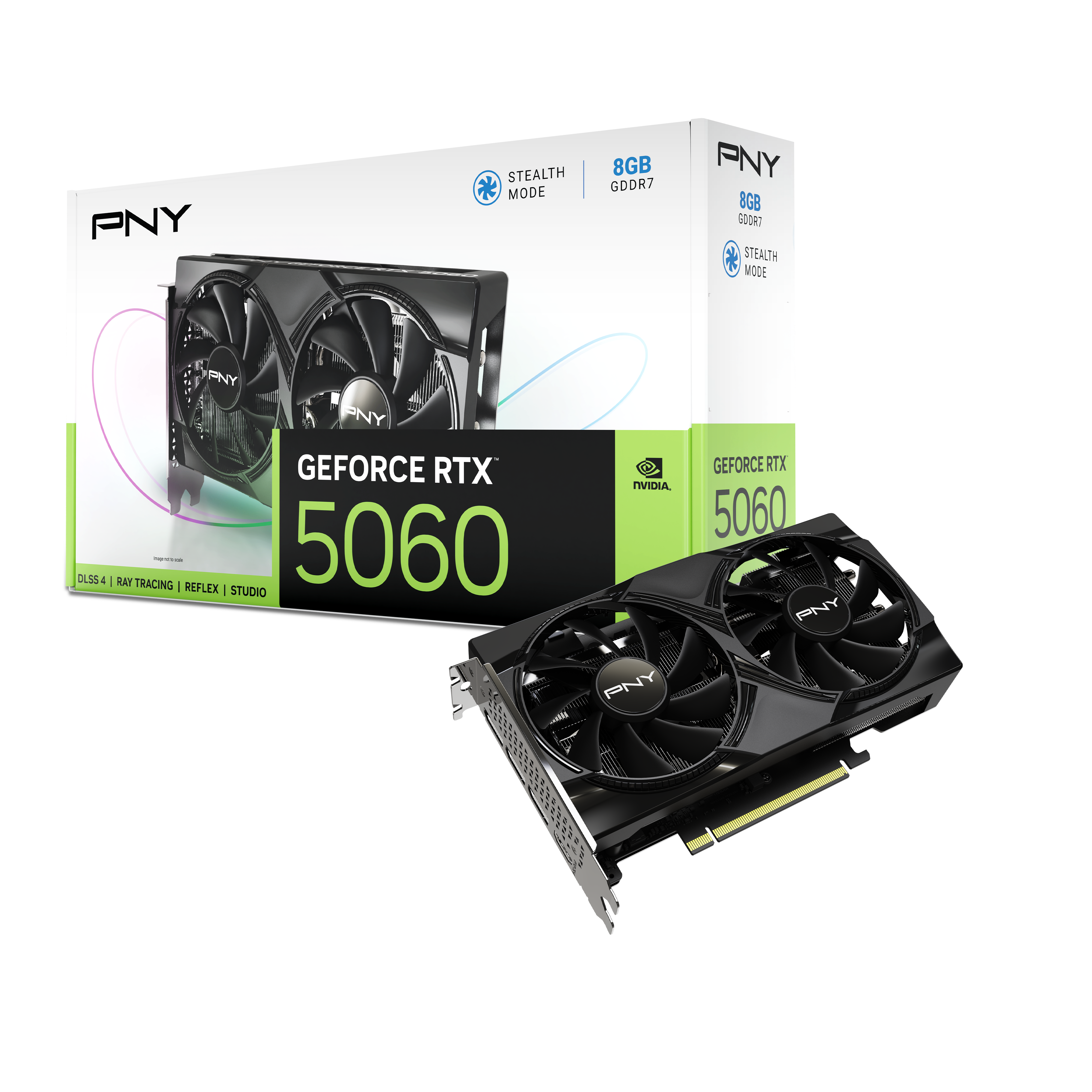

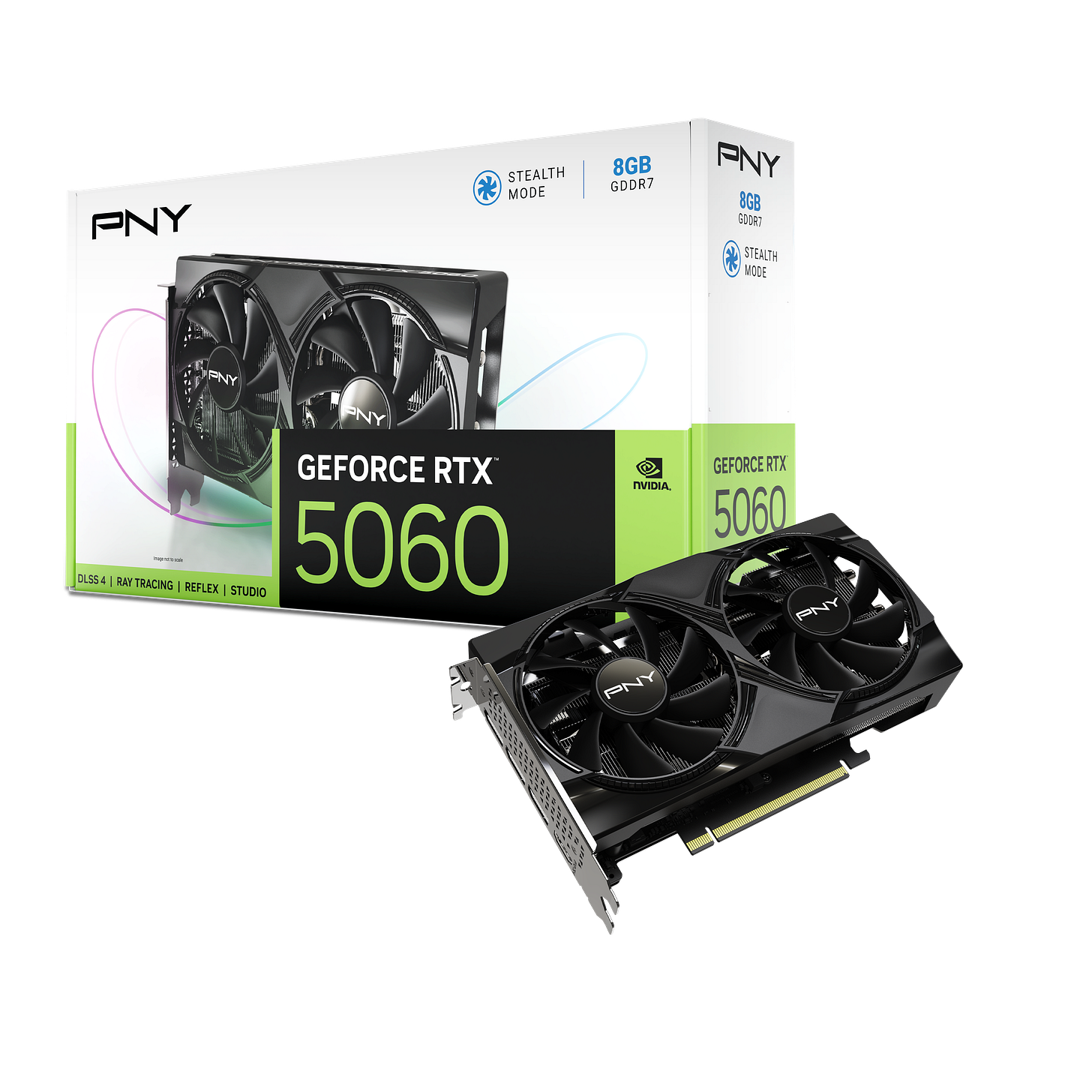

The PNY GeForce RTX 5060 8 GB Overclocked Dual Fan is a compact, budget-friendly graphics card that fits easily into a wide range of computer builds while offering a bit more cooling headroom than the single-fan version, but less than the three-fan model. If you’re not deep into tech or just want a clear explanation of what this card actually does without it being overcomplicated, this guide is for you. We’ll go through the specs one by one and explain what they mean in simple terms. You won’t need to know every technical keyword to follow along. I made this to help anyone learn without feeling overwhelmed, while still being thorough. Price and availability tend to change often with graphics cards, so we won’t be focusing on that here, but the MSRP for the standard model is $299 for reference.

Note: This guide covers the PNY factory-overclocked version of this card and shouldn’t be confused with the standard non-overclocked model that shares a similar design. If you’re looking for the non-overclocked version, I have a separate guide for that here:

Subscribe now

Hardware Specs and Architecture

This card is based on NVIDIA’s new Blackwell GPU design, which brings updated features and better performance for modern games and apps. The PNY dual fan version keeps things compact and easy to power while giving you a little more cooling headroom. Let’s go through what’s on the card and how each piece fits together.

Blackwell Architecture Basics

Blackwell is the next step after NVIDIA’s previous Ada design. One of the main upgrades is a new version of their AI-focused Tensor Cores, now in their fifth generation. These are small parts inside the GPU that handle tasks related to machine learning, including features like DLSS, which helps your games run faster by using AI to fill in extra frames. This version includes special support for lower-precision math (called FP4), which is better suited for those AI features and helps speed them up.

Ray tracing, which adds more realistic lighting and reflections in supported games, also gets a boost. The dedicated cores that handle this effect are now in their fourth generation. They’re better at processing large, complex 3D scenes, particularly when the geometry has lots of detail. This means newer games that use ray tracing will look smoother and run more efficiently than they did on older cards.

Core Counts and Clocks

The RTX 5060 comes with 3,840 CUDA cores. These are the parts of the chip that handle most of the general processing, especially when running games or creative apps. CUDA cores work together in large groups, taking small pieces of a task and running them all at once. The number gives a sense of how much raw computing power the card has.

As for speed, the card runs at a base clock of 2,280 megahertz and can boost up to 2,535 megahertz when needed. That’s a small bump over the non-overclocked version, which tops out at 2,497 megahertz. The difference isn’t huge in real-world use, but it gives the card a little more breathing room during heavier loads or longer sessions. Boost clocks are the faster speeds your card can reach when it’s not running too hot and still has room in its power budget. This boost happens automatically, depending on the current workload and temperature.

Memory and Bandwidth

This card uses 8 gigabytes of GDDR7 memory. That’s the latest generation of graphics memory, and it runs faster than the GDDR6 found in most earlier cards. That speed helps the GPU move textures, geometry data, and visual effects quickly in and out of memory while it’s processing frames. When memory moves faster, the card has an easier time keeping up with everything it needs to show on screen. This memory is called VRAM, which stands for video RAM. It’s where the graphics card stores things like game assets, background textures, lighting details, and other visual data while it’s working. The more VRAM a card has, the more it can keep ready to go without needing to pull from slower system memory. That makes a difference when scenes get more complex or when settings are turned up.

The RTX 5060 connects to its memory over a 128-bit path. Think of that as the width of the lane the data travels through. A wider lane and faster memory together give the card a total memory bandwidth of 448 gigabytes per second. That’s the amount of data it can move every second, and it helps reduce wait times when large amounts of visual content need to be processed all at once.

While 8 GB is still enough for a lot of common tasks, it’s starting to fall behind in terms of what’s becoming standard. Many newer mid-range cards are coming with 12 or even 16 GB, and more games and software are beginning to take advantage of that extra room. The RTX 5060 doesn’t offer other memory options, so if you’re planning to stretch this card over several years or work with high-memory tasks later on, that’s something to keep in mind. But for now, the 8 GB here is fast and can handle basic workloads as long as memory use stays within that limit.

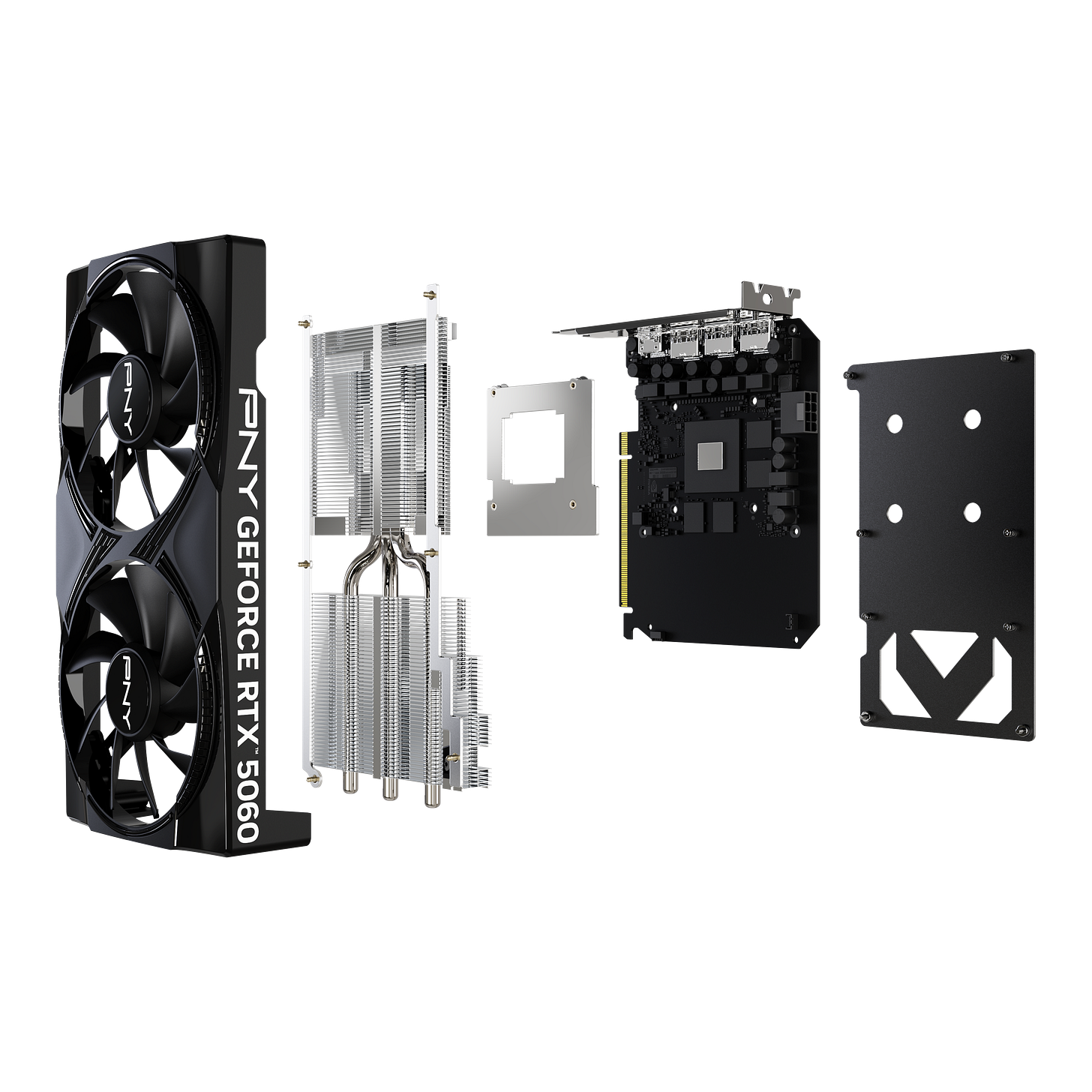

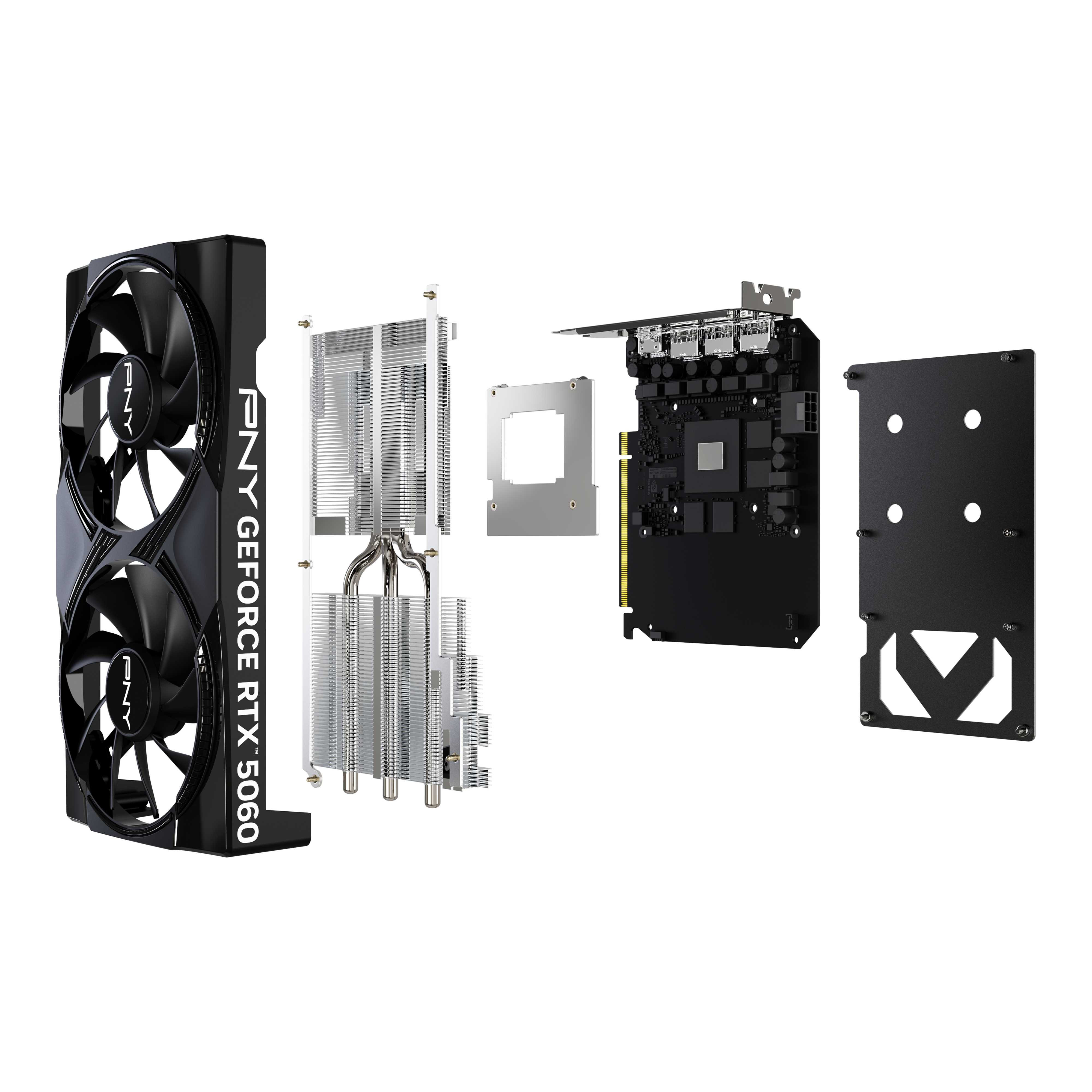

Power and Cooling Design

This card uses up to 145 watts when it’s under full load, which puts it in a comfortable range for a mid-range GPU. That amount of power draw means most modern power supplies can handle it without any trouble. It connects with a single 8-pin power cable, which is one of the most common plugs found in gaming power supplies, so there’s usually no need to change anything to get it running.

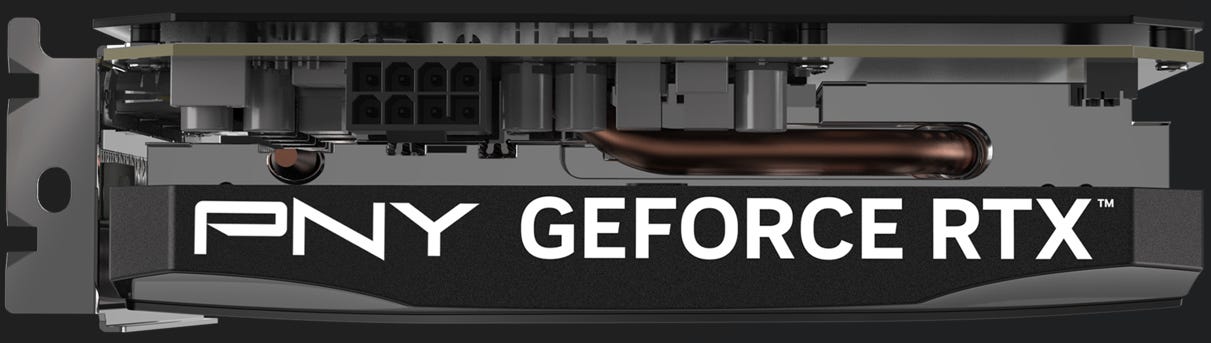

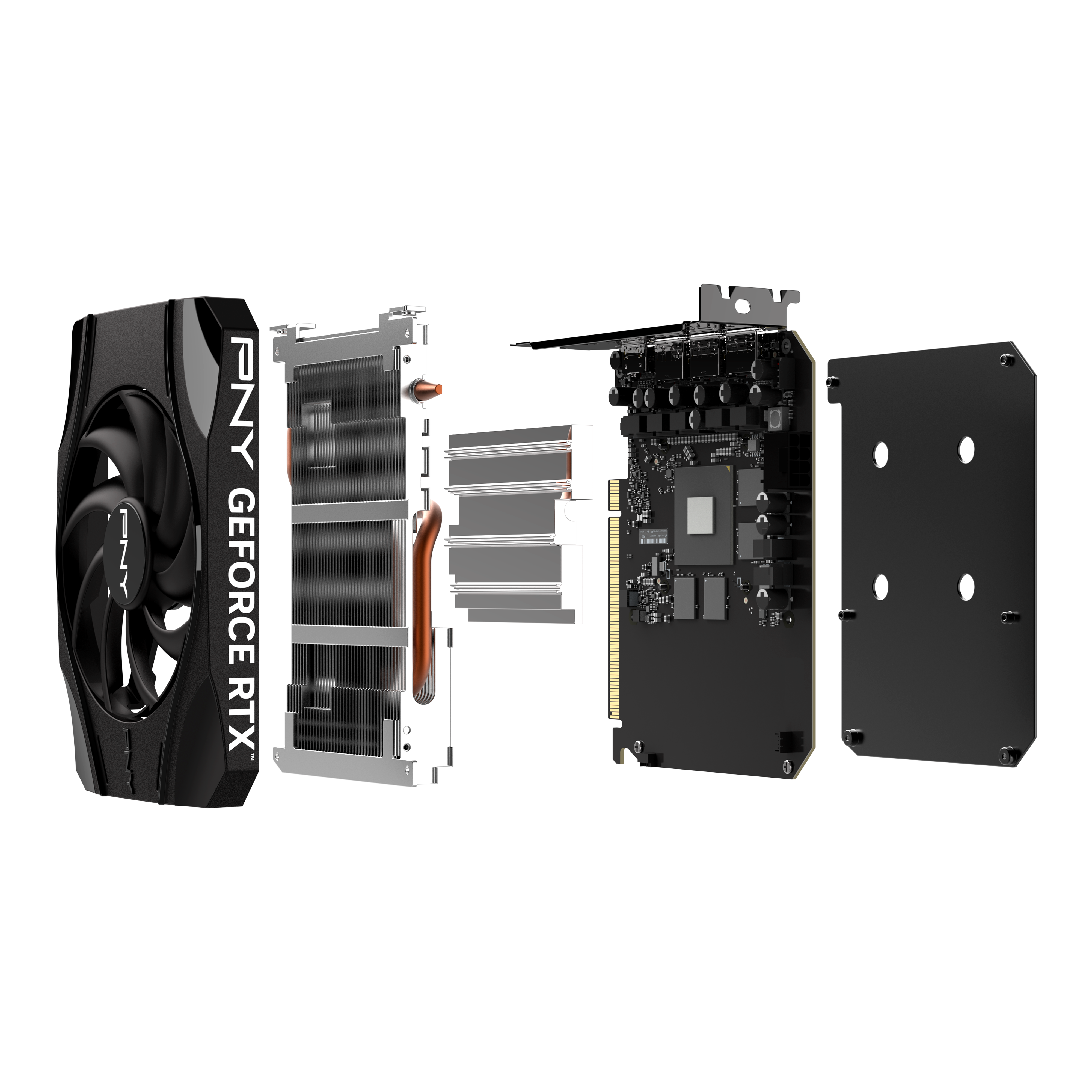

Cooling is handled by two fans mounted directly on the card. They work together to push air across a larger heatsink, which spreads heat out across a metal surface, helping it cool down more evenly before the air exits the card. The fans adjust their speed based on temperature, and having two of them helps keep noise lower since each one doesn’t have to work as hard to manage heat.

Because of the dual-fan design, heat is moved away from the card more efficiently than with single-fan models. That’s useful during longer gaming sessions or heavier workloads where temperatures stay higher for extended periods. The added cooling also helps the card maintain its boost speeds more consistently. The tradeoff is a slightly larger size, with the card measuring around 200 millimeters in length, but it still fits in most cases without much trouble.

There’s also a triple-fan version of the PNY RTX 5060, which offers even more thermal headroom for users planning to push the card harder or keep it running at high load for extended periods. Compared to that, the dual-fan model balances size and cooling better for standard cases and everyday use.

Software and Warranty

PNY includes its VelocityX software with the card, which gives you a simple way to adjust fan speeds, monitor temperatures, and fine-tune performance. It’s helpful if you want to control how the card behaves without needing to install third-party tools. On top of that, this model comes with a 3-year limited warranty through PNY, which gives you a bit of extra peace of mind if you’re planning to keep the card in your system for a while, just remember to register.

Building and Everyday Use

The PNY RTX 5060 8 GB Overclocked Dual Fan version is built to handle common tasks that most PC users care about, whether that’s gaming, light content creation, or building a system that stays cool without being oversized. It leans toward users who want something modern but don’t need high-end performance or large-scale workloads. Everything on the card is geared toward staying efficient, quiet, and reasonably fast for its class and price.

Game Performance Expectations

This card is made for 1080p gaming and handles that resolution well, especially with the small bump in boost speed from the factory overclock. Most modern games will run at high settings and still give smooth frame rates, with help from DLSS 4. DLSS stands for Deep Learning Super Sampling. It’s a feature that uses AI to fill in extra frames between the ones your system actually draws. That lets you get more frames per second without needing as much raw power from the card itself. Some newer titles with higher-than-average demands can push the card to its limits, particularly when they’re built with ultra-detailed environments or larger memory needs. In those cases, turning a few settings down can help keep the experience steady without losing too much visual quality.

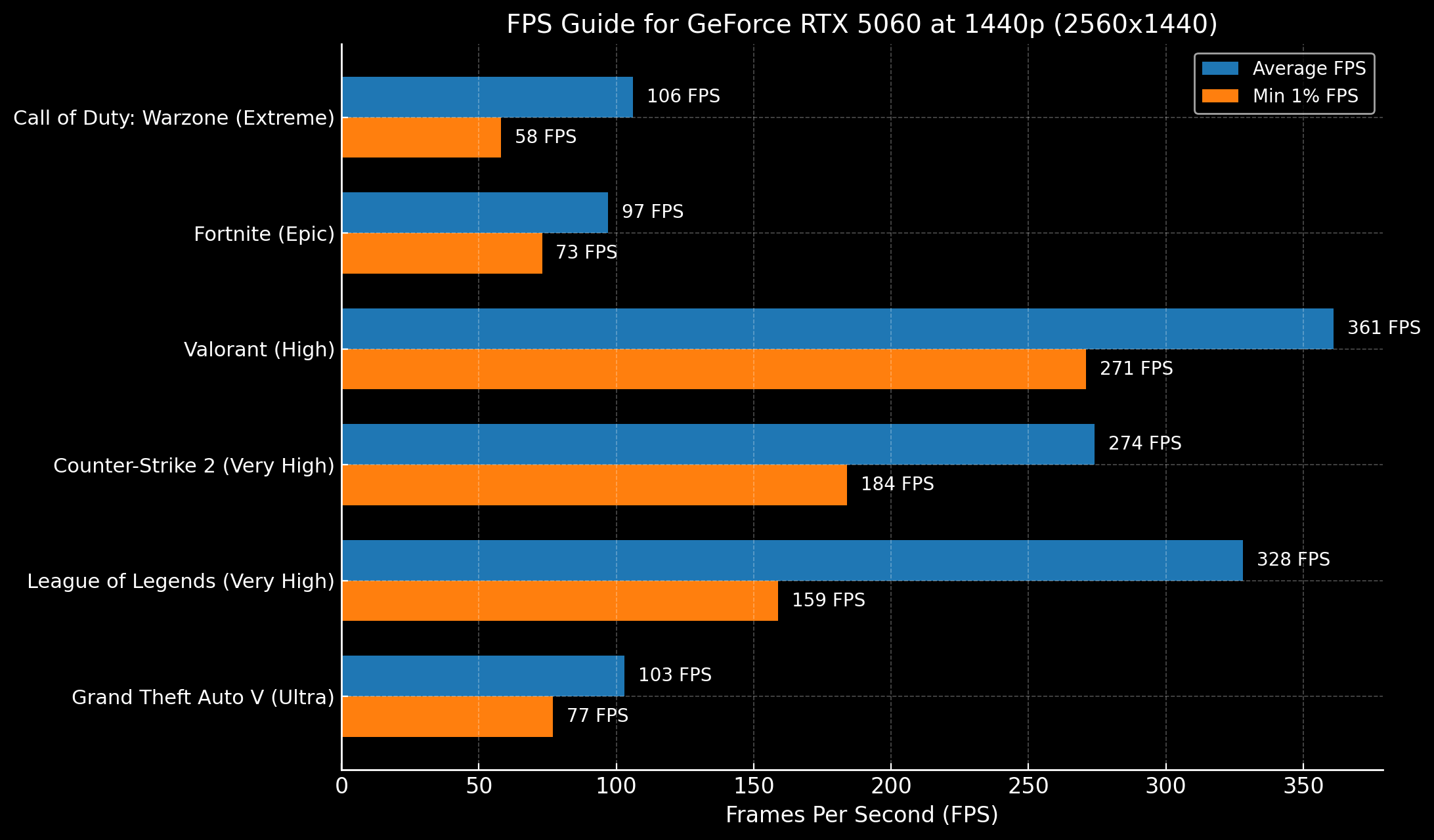

At 1440p, the card can still run a fair number of games, but this is where its limits start to show. Some settings may need to be turned down, depending on how demanding the game is. Titles with high-resolution textures, heavy effects, or larger environments can get close to the 8 GB memory cap, which may lead to lower frame rates or short stutters during play. That kind of load is less of an issue at 1080p, where the card has more breathing room. Older games or ones that don’t rely on the latest graphics features continue to run well without much trouble.

This card isn’t built for 4K or very high frame rates in demanding games, but it performs decently for players who want a steady experience at 1080p. You can expect a smooth 60 frames per second in many titles, with some going higher depending on the game and settings. With Reflex 2 helping cut down input delay, games that rely on quick reactions still feel responsive and sharp.

Content Creation with NVIDIA Studio

The RTX 5060 works with the NVIDIA Studio platform, which brings added support for creative software. That includes tools for editing photos, cutting videos, doing basic 3D modeling, and working with AI-based filters. The fifth-generation Tensor Cores improve the speed of effects that rely on AI, like background removal or voice filters in real-time video. The newer ray tracing cores also help speed up lighting previews in apps that support it.

For users doing casual to moderate creative work, the card holds up well. The GDDR7 memory is quick enough to handle high-resolution video timelines and preview changes without long delays. It’s a budget-friendly option that makes newer tools more accessible without jumping to a higher-end card. And with the dual-fan cooler, the card handles heavier loads more comfortably than the single-fan version. It’s less likely to hit thermal limits during longer rendering sessions or demanding video work.

The card also supports NVIDIA Broadcast, which gives you extra tools like noise removal, virtual backgrounds, and camera framing. These can be helpful if you’re doing live streams or recording content from home without needing extra gear.

System Power and Slot Requirements

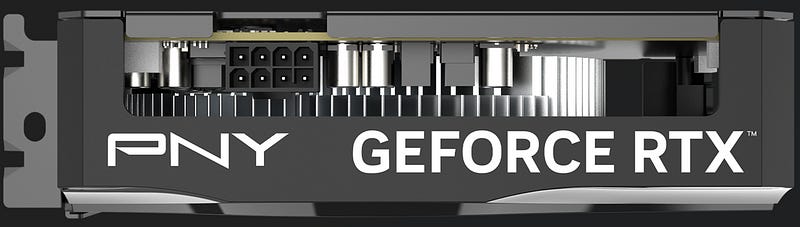

Power requirements for the RTX 5060 are fairly modest, which makes installation less stressful for people building or upgrading a system. It draws up to 145 watts and runs off a single 8-pin power cable, which is standard on most gaming power supplies. That keeps things simple and avoids needing extra adapters or special plugs.

The card fits into a regular PCIe slot and uses the PCIe 5.0 standard, though it’s still fully compatible with older PCIe 4.0 or 3.0 slots. It connects over 8 lanes instead of the full 16, but that doesn’t affect performance much with this kind of GPU. The smaller lane count helps save space on compact motherboards and leaves room for other expansion cards.

You don’t need a high-wattage supply to run this card, and most systems with at least a 550-watt power supply should be fine. That gives it flexibility for prebuilt systems or upgrades where you don’t want to replace too many parts at once.

Compact Build Potential and Display Output

This version of the RTX 5060 stays compact while having good cooling performance. It measures about 200 millimeters in length, which gives the dual-fan heatsink more room to spread heat while still fitting into most mid-size or smaller cases. It takes up two slots, meaning it covers the space of two expansion slots on the back of your case without blocking nearby components or drive bays. Compared to the single-fan model, this one runs cooler and more quietly under load while still keeping a small footprint. It’s a good fit for builds where space is limited but cooling still matters, like compact ATX setups or airflow-restricted enclosures. It also avoids the extra size of the triple-fan version, which offers more headroom but may not fit as easily into tighter builds.

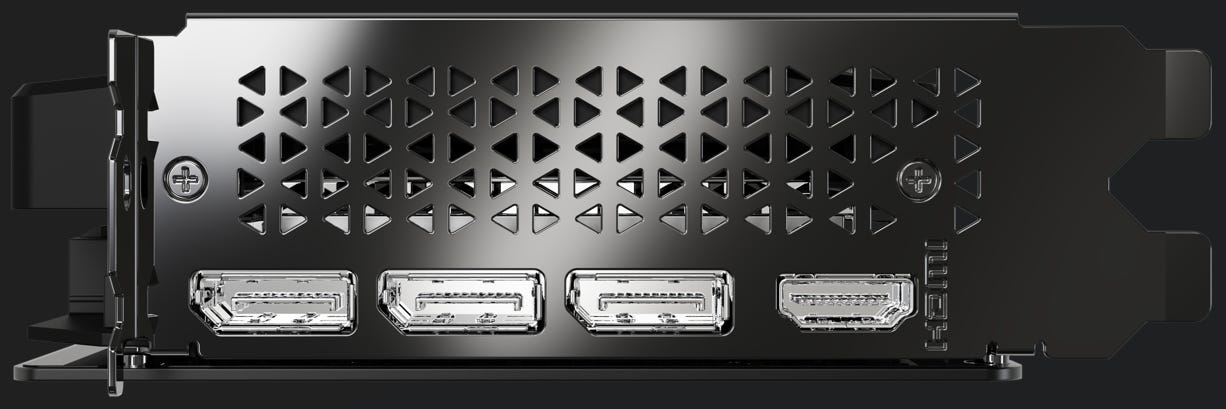

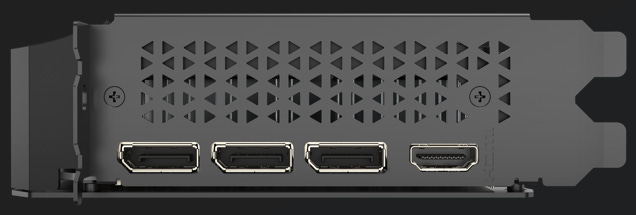

It comes with three DisplayPort 2.1 outputs and one HDMI 2.1 port, which gives you plenty of options if you’re running multiple monitors or connecting to a capture setup.

If you’re building in a case that doesn’t have room for oversized graphics cards or you just want something easier to install and manage, this version balances size, performance, and thermal control better than the shorter single-fan model.

Comparing with AMD RX 9060 XT

The closest competitor to the RTX 5060 is the AMD RX 9060 XT. Both cards sit around the $300 range and target the same type of use, which is 1080p gaming, support for modern features, and enough performance to handle some creative workloads without going overboard.

What Sets Them Apart

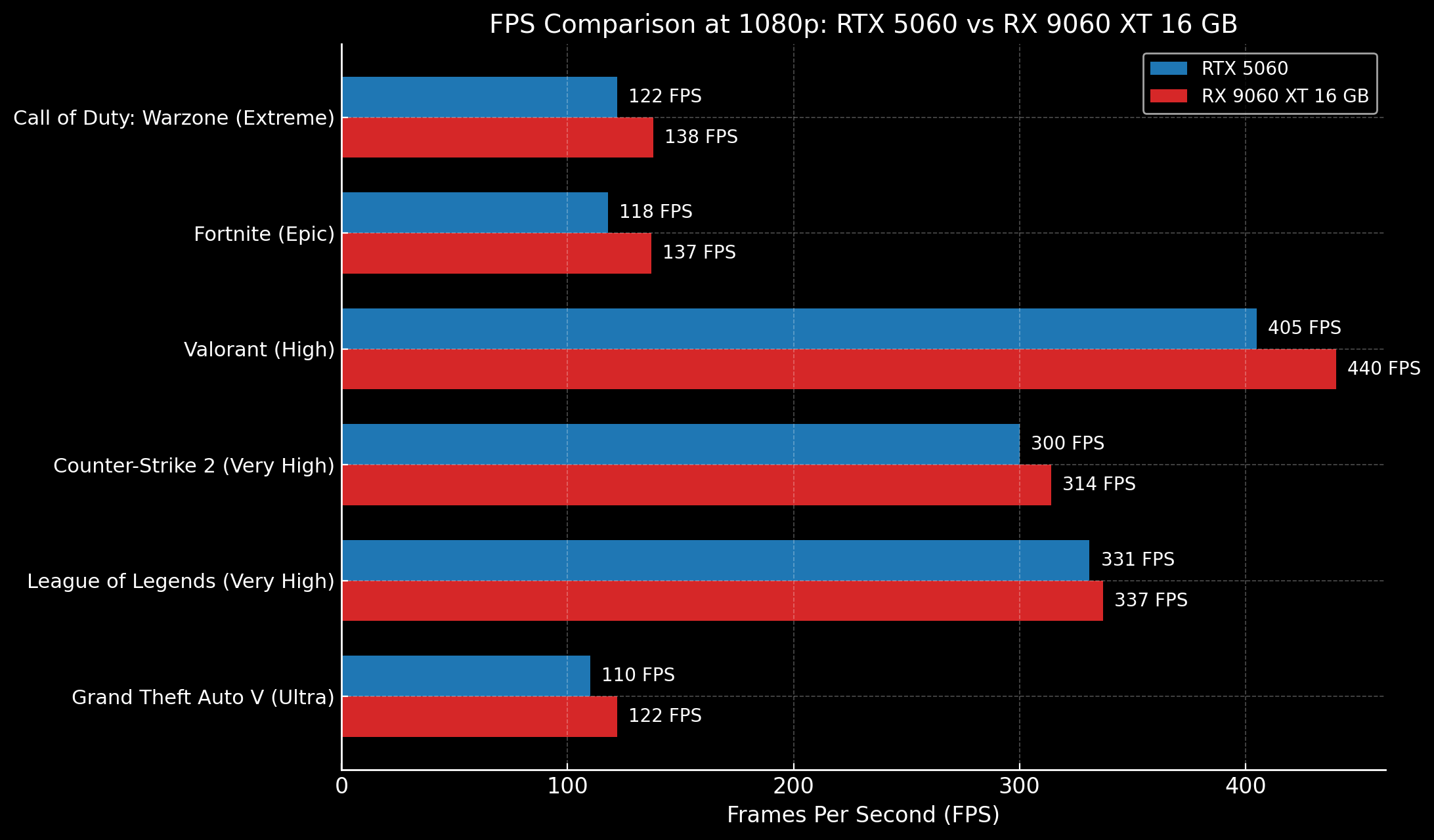

At 1080p, both cards deliver good results, and the difference in game performance depends a lot on how the game is built. The RTX 5060 uses DLSS 4, which helps boost frame rates by using AI to generate extra frames. AMD cards use FSR, a similar tool for upscaling, though it works differently. In many cases, performance will feel about the same unless you’re looking closely at numbers.

The RX 9060 XT can pull ahead at 1440p, mostly because it has a wider memory bus and is available in both 8 GB and 16 GB models. Games that rely on higher memory capacity or that stream a lot of data while you play tend to benefit from that extra headroom. It also has an edge in some non-gaming tasks like 3D rendering or working with larger video timelines, where the extra memory and raw performance come into play. On the RTX 5060, you’re limited to 8 GB, which can start to feel a bit tight in performance.

Cooling and Memory Choices

Many RX 9060 XT models come with dual- or triple-fan coolers and larger heatsinks, which help keep temperatures lower and noise down during long sessions. It currently doesn’t come in a single-fan version. The RTX 5060 Dual Fan model strikes a middle ground being both cooler and quieter than the single-fan version, but still smaller and easier to fit into compact builds than a triple-fan card. Its dual-fan setup spreads heat more evenly across the heatsink and does a decent job staying quiet under load, particularly during extended gaming or creative work.

The RTX 5060 is more compact and more power-efficient, while the RX 9060 XT leans toward higher performance and longer-term memory flexibility options. Both have strengths depending on what you’re building for.

Conclusion

The PNY RTX 5060 8 GB Overclocked Dual Fan GPU brings together updated architecture, faster memory, and practical design choices in a compact card that fits where larger models may not. It runs cool enough under basic to moderate use, handles modern games well at 1080p, and supports creative tools with features that speed up AI and video workflows. With two fans and 8 GB of VRAM, it’s a card built more for everyday needs than for pushing limits, but the hardware holds up well for its size and price.

If you want to see how this version stacks up against the rest of the lineup, I’ve got a full comparison of all four PNY RTX 5060 8 GB models:

1. PNY RTX 5060 Overclocked Dual Fan Product Page

2. PNY VelocityX Software

3. NVIDIA Blackwell Architecture Overview

4. NVIDIA DLSS 4 Developer Guide

5. NVIDIA Studio Support and Setup

6. PNY Product Registration

You can reach me at alexander.obregon47@gmail.com for sponsorships, collaboration requests, or other professional opportunities.

Share Alexander Obregon's Substack

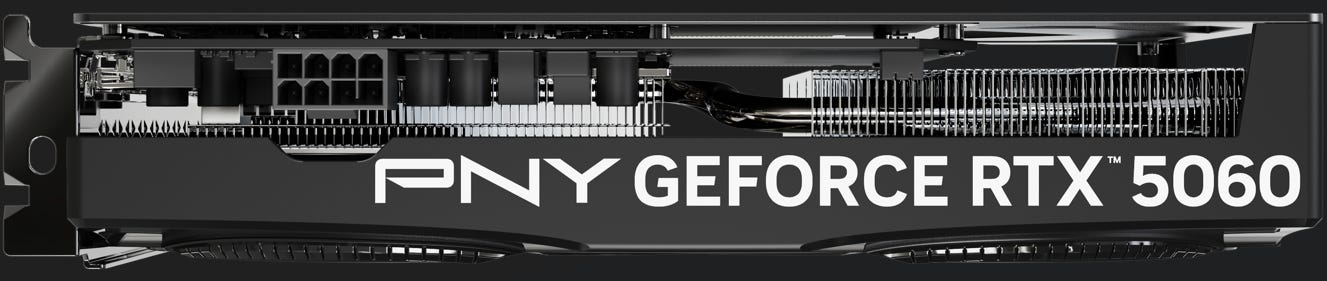

The PNY GeForce RTX 5060 8 GB Dual Fan is a compact, budget-friendly graphics card that fits easily into a wide range of computer builds while offering a bit more cooling headroom than the single-fan version, but less than the three-fan model. If you’re not deep into tech or just want a clear explanation of what this card actually does without it being overcomplicated, this guide is for you. We’ll go through the specs one by one and explain what they mean in simple terms. You won’t need to know every technical keyword to follow along. I made this to help anyone learn without feeling overwhelmed, while still being thorough. Price and availability tend to change often with graphics cards, so we won’t be focusing on that here, but the MSRP for this model is $299 for reference.

Note: This guide covers the PNY non-overclocked version of the card and shouldn’t be confused with factory-overclocked models that share a similar design. If you're looking for the overclocked version, I have a separate guide for that here:

Subscribe now

Hardware Specs and Architecture

This card is based on NVIDIA’s new Blackwell GPU design, which brings updated features and better performance for modern games and apps. The PNY dual fan version keeps things compact and easy to power while giving you a little more cooling headroom. Let’s go through what’s on the card and how each piece fits together.

Blackwell Architecture Basics

Blackwell is the next step after NVIDIA’s previous Ada design. One of the main upgrades is a new version of their AI-focused Tensor Cores, now in their fifth generation. These are small parts inside the GPU that handle tasks related to machine learning, including features like DLSS, which helps your games run faster by using AI to fill in extra frames. This version includes special support for lower-precision math (called FP4), which is better suited for those AI features and helps speed them up.

Ray tracing, which adds more realistic lighting and reflections in supported games, also gets a boost. The dedicated cores that handle this effect are now in their fourth generation. They’re better at processing large, complex 3D scenes, particularly when the geometry has lots of detail. This means newer games that use ray tracing will look smoother and run more efficiently than they did on older cards.

Core Counts and Clocks

The RTX 5060 comes with 3,840 CUDA cores. These are the parts of the chip that handle most of the general processing, especially when running games or creative apps. CUDA cores work together in large groups, taking small pieces of a task and running them all at once. The number gives a sense of how much raw computing power the card has.

As for speed, the card runs at a base clock of 2,280 megahertz and can boost up to 2,497 megahertz when needed. Boost clocks are the faster speeds your card can reach when it’s not running too hot and still has room in its power budget. This boost happens automatically, depending on the current workload and temperature.

Memory and Bandwidth

This card uses 8 gigabytes of GDDR7 memory. That’s the latest generation of graphics memory, and it runs faster than the GDDR6 found in most earlier cards. That speed helps the GPU move textures, geometry data, and visual effects quickly in and out of memory while it’s processing frames. When memory moves faster, the card has an easier time keeping up with everything it needs to show on screen. This memory is called VRAM, which stands for video RAM. It’s where the graphics card stores things like game assets, background textures, lighting details, and other visual data while it’s working. The more VRAM a card has, the more it can keep ready to go without needing to pull from slower system memory. That makes a difference when scenes get more complex or when settings are turned up.

The RTX 5060 connects to its memory over a 128-bit path. Think of that as the width of the lane the data travels through. A wider lane and faster memory together give the card a total memory bandwidth of 448 gigabytes per second. That’s the amount of data it can move every second, and it helps reduce wait times when large amounts of visual content need to be processed all at once.

While 8 GB is still enough for a lot of common tasks, it’s starting to fall behind in terms of what’s becoming standard. Many newer mid-range cards are coming with 12 or even 16 GB, and more games and software are beginning to take advantage of that extra room. The RTX 5060 doesn’t offer other memory options, so if you’re planning to stretch this card over several years or work with high-memory tasks later on, that’s something to keep in mind. But for now, the 8 GB here is fast and can handle basic workloads as long as memory use stays within that limit.

Power and Cooling Design

This card uses up to 145 watts when it’s under full load, which puts it in a comfortable range for a mid-range GPU. That amount of power draw means most modern power supplies can handle it without any trouble. It connects with a single 8-pin power cable, which is one of the most common plugs found in gaming power supplies, so there’s usually no need to change anything to get it running.

Cooling is handled by two fans mounted directly on the card. They work together to push air across a larger heatsink, which spreads heat out across a metal surface, helping it cool down more evenly before the air exits the card. The fans adjust their speed based on temperature, and having two of them helps keep noise lower since each one doesn’t have to work as hard to manage heat.

Because of the dual-fan design, heat is moved away from the card more efficiently than with single-fan models. That’s useful during longer gaming sessions or heavier workloads where temperatures stay higher for extended periods. The added cooling also helps the card maintain its boost speeds more consistently. The tradeoff is a slightly larger size, with the card measuring around 200 millimeters in length, but it still fits in most cases without much trouble.

There’s also a triple-fan version of the PNY RTX 5060, which offers even more thermal headroom for users planning to push the card harder or keep it running at high load for extended periods. Compared to that, the dual-fan model balances size and cooling better for standard cases and everyday use.

Software and Warranty

PNY includes its VelocityX software with the card, which gives you a simple way to adjust fan speeds, monitor temperatures, and fine-tune performance. It’s helpful if you want to control how the card behaves without needing to install third-party tools. On top of that, this model comes with a 3-year limited warranty through PNY, which gives you a bit of extra peace of mind if you’re planning to keep the card in your system for a while, just remember to register.

Building and Everyday Use

The PNY RTX 5060 8 GB Dual Fan is built to handle common tasks that most PC users care about, whether that’s gaming, light content creation, or building a system that stays cool without being oversized. It leans toward users who want something modern but don’t need high-end performance or large-scale workloads. Everything on the card is geared toward staying efficient, quiet, and reasonably fast for its class and price.

Game Performance Expectations

This card is made for 1080p gaming and handles that resolution decently. Most modern games will run at high settings and still give smooth frame rates, with help from DLSS 4. DLSS stands for Deep Learning Super Sampling. It’s a feature that uses AI to fill in extra frames between the ones your system actually draws. That lets you get more frames per second without needing as much raw power from the card itself. Some newer titles with higher-than-average demands can push the card to its limits, particularly when they’re built with ultra-detailed environments or larger memory needs. In those cases, turning a few settings down can help keep the experience steady without losing too much visual quality.

At 1440p, the card can still run a fair number of games, but this is where its limits start to show. Some settings may need to be turned down, depending on how demanding the game is. Titles with high-resolution textures, heavy effects, or larger environments can get close to the 8 GB memory cap, which may lead to lower frame rates or short stutters during play. That kind of load is less of an issue at 1080p, where the card has more breathing room. Older games or ones that don’t rely on the latest graphics features continue to run well without much trouble.

This card isn’t built for 4K or very high frame rates in demanding games, but it performs decently for players who want a steady experience at 1080p. You can expect a smooth 60 frames per second in many titles, with some going higher depending on the game and settings. With Reflex 2 helping cut down input delay, games that rely on quick reactions still feel responsive and sharp.

Content Creation with NVIDIA Studio

The RTX 5060 works with the NVIDIA Studio platform, which brings added support for creative software. That includes tools for editing photos, cutting videos, doing basic 3D modeling, and working with AI-based filters. The fifth-generation Tensor Cores improve the speed of effects that rely on AI, like background removal or voice filters in real-time video. The newer ray tracing cores also help speed up lighting previews in apps that support it.

For users doing casual to moderate creative work, the card holds up well. The GDDR7 memory is quick enough to handle high-resolution video timelines and preview changes without long delays. It’s a budget-friendly option that makes newer tools more accessible without jumping to a higher-end card. And with the dual-fan cooler, the card handles heavier loads more comfortably than the single-fan version. It’s less likely to hit thermal limits during longer rendering sessions or demanding video work.

The card also supports NVIDIA Broadcast, which gives you extra tools like noise removal, virtual backgrounds, and camera framing. These can be helpful if you’re doing live streams or recording content from home without needing extra gear.

System Power and Slot Requirements

Power requirements for the RTX 5060 are fairly modest, which makes installation less stressful for people building or upgrading a system. It draws up to 145 watts and runs off a single 8-pin power cable, which is standard on most gaming power supplies. That keeps things simple and avoids needing extra adapters or special plugs.

The card fits into a regular PCIe slot and uses the PCIe 5.0 standard, though it’s still fully compatible with older PCIe 4.0 or 3.0 slots. It connects over 8 lanes instead of the full 16, but that doesn’t affect performance much with this kind of GPU. The smaller lane count helps save space on compact motherboards and leaves room for other expansion cards.

You don’t need a high-wattage supply to run this card, and most systems with at least a 550-watt power supply should be fine. That gives it flexibility for prebuilt systems or upgrades where you don’t want to replace too many parts at once.

Compact Build Potential and Display Output

This version of the RTX 5060 stays compact while having good cooling performance. It measures about 200 millimeters in length, which gives the dual-fan heatsink more room to spread heat while still fitting into most mid-size or smaller cases. It takes up two slots, meaning it covers the space of two expansion slots on the back of your case without blocking nearby components or drive bays. Compared to the single-fan model, this one runs cooler and more quietly under load while still keeping a small footprint. It’s a good fit for builds where space is limited but cooling still matters, like compact ATX setups or airflow-restricted enclosures. It also avoids the extra size of the triple-fan version, which offers more headroom but may not fit as easily into tighter builds.

It comes with three DisplayPort 2.1 outputs and one HDMI 2.1 port, which gives you plenty of options if you’re running multiple monitors or connecting to a capture setup.

If you’re building in a case that doesn’t have room for oversized graphics cards or you just want something easier to install and manage, this version balances size, performance, and thermal control better than the shorter single-fan model.

Comparing with AMD RX 9060 XT

The closest competitor to the RTX 5060 is the AMD RX 9060 XT. Both cards sit around the $300 range and target the same type of use, which is 1080p gaming, support for modern features, and enough performance to handle some creative workloads without going overboard.

What Sets Them Apart

At 1080p, both cards deliver good results, and the difference in game performance depends a lot on how the game is built. The RTX 5060 uses DLSS 4, which helps boost frame rates by using AI to generate extra frames. AMD cards use FSR, a similar tool for upscaling, though it works differently. In many cases, performance will feel about the same unless you’re looking closely at numbers.

The RX 9060 XT can pull ahead at 1440p, mostly because it has a wider memory bus and is available in both 8 GB and 16 GB models. Games that rely on higher memory capacity or that stream a lot of data while you play tend to benefit from that extra headroom. It also has an edge in some non-gaming tasks like 3D rendering or working with larger video timelines, where the extra memory and raw performance come into play. On the RTX 5060, you’re limited to 8 GB, which can start to feel a bit tight in performance.

Cooling and Memory Choices

Many RX 9060 XT models come with dual- or triple-fan coolers and larger heatsinks, which help keep temperatures lower and noise down during long sessions. It currently doesn’t come in a single-fan version. The RTX 5060 Dual Fan model strikes a middle ground being both cooler and quieter than the single-fan version, but still smaller and easier to fit into compact builds than a triple-fan card. Its dual-fan setup spreads heat more evenly across the heatsink and does a decent job staying quiet under load, particularly during extended gaming or creative work.

The RTX 5060 is more compact and more power-efficient, while the RX 9060 XT leans toward higher performance and longer-term memory flexibility options. Both have strengths depending on what you’re building for.

Conclusion

The PNY RTX 5060 8 GB Dual Fan brings together updated architecture, faster memory, and practical design choices in a compact card that fits where larger models may not. It runs cool enough under basic to moderate use, handles modern games well at 1080p, and supports creative tools with features that speed up AI and video workflows. With two fans and 8 GB of VRAM, it’s a card built more for everyday needs than for pushing limits, but the hardware holds up well for its size and price.

If you want to see how this version stacks up against the rest of the lineup, I’ve got a full comparison of all four PNY RTX 5060 8 GB models:

1. PNY RTX 5060 Dual Fan Product Page

2. PNY VelocityX Software

3. NVIDIA Blackwell Architecture Overview

4. NVIDIA DLSS 4 Developer Guide

5. NVIDIA Studio Support and Setup

6. PNY Product Registration

You can reach me at alexander.obregon47@gmail.com for sponsorships, collaboration requests, or other professional opportunities.

Share Alexander Obregon's Substack

The PNY GeForce RTX 5060 8 GB Single Fan is a small, budget-friendly graphics card that fits easily into compact computer builds. If you’re not deep into tech or just want a clear explanation of what this card actually does without it being overcomplicated, this guide is for you. We’ll go through the specs one by one and explain what they mean in simple terms. You won’t need to know every technical keyword to follow along. I made this to help anyone learn without feeling overwhelmed, while still being thorough. Price and availability tend to change often with graphics cards, so we won’t be focusing on that here, but the MSRP for this model is $299 for reference. This card also shows up in a lot of prebuilt PCs, which is one of the more common ways people end up with this card.

Subscribe now

Hardware Specs and Architecture

This card is based on NVIDIA’s new Blackwell GPU design, which brings updated features and better performance for modern games and apps. The PNY version keeps things compact and easy to power while still giving you everything that matters for a smooth experience. Let’s go through what’s on the card and how each piece fits together.

Blackwell Architecture Basics

Blackwell is the next step after NVIDIA’s previous Ada design. One of the main upgrades is a new version of their AI-focused Tensor Cores, now in their fifth generation. These are small parts inside the GPU that handle tasks related to machine learning, including features like DLSS, which helps your games run faster by using AI to fill in extra frames. This version includes special support for lower-precision math (called FP4), which is better suited for those AI features and helps speed them up.

Ray tracing, which adds more realistic lighting and reflections in supported games, also gets a boost. The dedicated cores that handle this effect are now in their fourth generation. They’re better at processing large, complex 3D scenes, particularly when the geometry has lots of detail. This means newer games that use ray tracing will look smoother and run more efficiently than they did on older cards.

Core Counts and Clocks

The RTX 5060 comes with 3,840 CUDA cores. These are the parts of the chip that handle most of the general processing, especially when running games or creative apps. CUDA cores work together in large groups, taking small pieces of a task and running them all at once. The number gives a sense of how much raw computing power the card has.

As for speed, the card runs at a base clock of 2,280 megahertz and can boost up to 2,497 megahertz when needed. Boost clocks are the faster speeds your card can reach when it’s not running too hot and still has room in its power budget. This boost happens automatically, depending on the current workload and temperature.

Memory and Bandwidth

This card uses 8 gigabytes of GDDR7 memory. That’s the latest generation of graphics memory, and it runs faster than the GDDR6 found in most earlier cards. That speed helps the GPU move textures, geometry data, and visual effects quickly in and out of memory while it’s processing frames. When memory moves faster, the card has an easier time keeping up with everything it needs to show on screen. This memory is called VRAM, which stands for video RAM. It’s where the graphics card stores things like game assets, background textures, lighting details, and other visual data while it’s working. The more VRAM a card has, the more it can keep ready to go without needing to pull from slower system memory. That makes a difference when scenes get more complex or when settings are turned up.

The RTX 5060 connects to its memory over a 128-bit path. Think of that as the width of the lane the data travels through. A wider lane and faster memory together give the card a total memory bandwidth of 448 gigabytes per second. That’s the amount of data it can move every second, and it helps reduce wait times when large amounts of visual content need to be processed all at once.

While 8 GB is still enough for a lot of common tasks, it’s starting to fall behind in terms of what’s becoming standard. Many newer mid-range cards are coming with 12 or even 16 GB, and more games and software are beginning to take advantage of that extra room. The RTX 5060 doesn’t offer other memory options, so if you’re planning to stretch this card over several years or work with high-memory tasks later on, that’s something to keep in mind. But for now, the 8 GB here is fast and can handle basic workloads as long as memory use stays within that limit.

Power and Cooling Design

This card uses up to 145 watts when it’s under full load, which puts it in a comfortable range for a mid-range GPU. That amount of power draw means most modern power supplies can handle it without any trouble. It connects with a single 8-pin power cable, which is one of the most common plugs found in gaming power supplies, so there’s usually no need to change anything to get it running.

Cooling is handled by one fan mounted directly on the card. It pushes air across the heatsink, which spreads heat out across a metal surface, helping it cool down before the air exits the card. The fan speed adjusts based on temperature, and it’s designed to stay relatively quiet during normal use.

Because there’s only one fan, heat doesn’t move away from the card as quickly as it would on models with two or three fans. That’s something to be aware of during long or demanding sessions where temperatures stay high for extended periods. It’s not a deal-breaker, but it can affect how hot the card runs and how hard the fan has to work to manage it. The upside is that the smaller cooling system helps keep the card compact, which is a better fit for tighter cases or more space-conscious builds.

Software and Warranty

PNY includes its VelocityX software with the card, which gives you a simple way to adjust fan speeds, monitor temperatures, and fine-tune performance. It’s helpful if you want to control how the card behaves without needing to install third-party tools. On top of that, this model comes with a 3-year limited warranty through PNY, which gives you a bit of extra peace of mind if you’re planning to keep the card in your system for a while, just remember to register.

Building and Everyday Use

The PNY RTX 5060 8 GB Single Fan is built to handle common tasks that most PC users care about, whether that’s gaming, light content creation, or simply building a system that runs quietly and fits in a tighter space. It leans toward users who want something modern but don’t need high-end performance or large-scale workloads. Everything on the card is geared toward staying compact, efficient, and reasonably fast for its class and budget.

Game Performance Expectations

This card is mainly built for 1080p gaming and does a decent job at that resolution. Most games run smoothly with high or very high graphics settings, and the frame rates stay steady in most cases. Lighter games like League of Legends or Valorant can go far beyond 300 frames per second. Heavier ones like Grand Theft Auto V or Call of Duty: Warzone land closer to 100 to 120 frames per second depending on what’s happening on screen.

That’s with DLSS 4 turned on, which helps boost performance by generating extra frames between the ones the GPU normally draws. The feature is built around AI, and it lets you play at higher frame rates without putting as much pressure on the hardware. The single-fan version of this card, which this article focuses on, can sometimes run hot during long sessions. When that happens, the clock speed may lower a bit to cool things down. Lowering one or two settings can help keep the frame rate from dropping during those heavier moments.

At 1440p, the card still handles a good range of games. The frame rates are lower than at 1080p, but many games are still playable at high settings. Valorant and League of Legends still run very fast, while more demanding games like Fortnite and Warzone drop closer to the 100 FPS range. If the game uses large textures or advanced effects, that can fill up the card’s 8 GB of video memory. When the memory gets close to full, you may notice some brief stuttering or short pauses, especially in newer titles or large maps. That doesn’t happen as much at 1080p, where the memory use is lower and the card has more room to work with.

4K is a lot harder for this card to keep up with, but it can still play certain games if the settings are picked carefully. League of Legends and Valorant still run above 200 FPS at 4K, but more demanding games like Fortnite and Warzone fall closer to 60 FPS or below. That’s still playable, but it won’t feel as smooth as lower resolutions. When the card gets hotter at this resolution, the single fan can struggle to cool it fast enough, which means the card may slow itself down to manage the heat. For smoother play, lowering the resolution or graphics settings usually helps. Reflex 2 still works well at 4K, so fast-paced games feel responsive even if the frame rate is lower.

All benchmark numbers in this article come from howmanyfps.com which is a great resource, based on tests with the RTX 5060 and Ryzen 7 7800X3D.

Content Creation with NVIDIA Studio

The RTX 5060 works with the NVIDIA Studio platform, which brings added support for creative software. That includes tools for editing photos, cutting videos, doing basic 3D modeling, and working with AI-based filters. The fifth-generation Tensor Cores improve the speed of effects that rely on AI, like background removal or voice filters in real-time video. The newer ray tracing cores also help speed up lighting previews in apps that support it.

For users doing casual to moderate creative work, the card holds up well. The GDDR7 memory is quick enough to handle high-resolution video timelines and preview changes without long delays. It’s a budget-friendly option that makes newer tools more accessible without jumping to a higher-end card. But for large 3D scenes or long 4K video projects, the 8 GB of VRAM can feel a bit tight, and the single-fan design may run hotter under heavy load. That can lead to thermal throttling, which means the card may slow itself down to keep temperatures under control during longer sessions. It’s better suited to shorter workloads, hobby projects, and creators who are building content for social platforms or basic streaming.

The card also supports NVIDIA Broadcast, which gives you extra tools like noise removal, virtual backgrounds, and camera framing. These can be helpful if you’re doing live streams or recording content from home without needing extra gear.

System Power and Slot Requirements

Power requirements for the RTX 5060 are fairly modest, which makes installation less stressful for people building or upgrading a system. It draws up to 145 watts and runs off a single 8-pin power cable, which is standard on most gaming power supplies. That keeps things simple and avoids needing extra adapters or special plugs.

The card fits into a regular PCIe slot and uses the PCIe 5.0 standard, though it’s still fully compatible with older PCIe 4.0 or 3.0 slots. It connects over 8 lanes instead of the full 16, but that doesn’t affect performance much with this kind of GPU. The smaller lane count helps save space on compact motherboards and leaves room for other expansion cards.

You don’t need a high-wattage supply to run this card, and most systems with at least a 550-watt power supply should be fine. That gives it flexibility for prebuilt systems or upgrades where you don’t want to replace too many parts at once.

Compact Build Potential and Display Output

This version of the RTX 5060 is very compact compared to many other modern graphics cards. It measures about 146 millimeters in length, which means it can slide into small cases that bigger cards wouldn’t fit into. The single-fan design helps keep the size down and makes it easier to work around other components inside the case. It only takes up two slots, which means it covers the space of two expansion slots on the back of your case, and avoids blocking nearby connectors or drive bays. That makes it a good choice for tighter builds like mini towers or small-form-factor PCs, specifically in setups where airflow is a concern. Even with its smaller footprint, the card stays sturdy and doesn’t require extra support brackets or mounting accessories.

It comes with three DisplayPort connections and one HDMI port, which gives you plenty of options if you’re running multiple monitors or connecting to a capture setup.

If you’re building in a case with limited room or upgrading an older system that wasn’t designed for massive graphics cards, this one is easier to work with and less likely to cause space-related issues during installation.

Comparing with AMD RX 9060 XT

The closest competitor to the RTX 5060 is the AMD RX 9060 XT. The 5060 has an MSRP of $299, while the RX 9060 XT 16 GB comes in at $349. Both target the same kind of use, which includes 1080p gaming, support for modern features, and enough performance to handle some creative workloads without going overboard.

What Sets Them Apart

At 1080p, both cards deliver good results, and the difference in game performance depends a lot on how the game is built. The RTX 5060 uses DLSS 4, which helps boost frame rates by using AI to generate extra frames. AMD cards use FSR, a similar tool for upscaling, though it works differently. In many cases, performance will feel about the same unless you’re looking closely at numbers.

The RX 9060 XT 16 GB pulls ahead more clearly at 4K. It has a wider memory bus and more VRAM, which helps in games that stream large textures or manage heavy effects. In titles like Fortnite, Valorant, and Call of Duty: Warzone, the RX 9060 XT consistently shows higher frame rates at 3840x2160. That gives it some breathing room in longer play sessions or when you’re working with larger game environments.

Cooling and Memory Choices

Many RX 9060 XT models come with dual- or triple-fan coolers and larger heatsinks, which help keep temperatures lower and noise down during long sessions. It currently doesn’t come in a single-fan version. The RTX 5060 Single Fan model is smaller and easier to fit into compact cases, but that one fan has to work harder when the card is under heavy load. For lighter use, it’s fine, but in longer gaming sessions or creative work, it may run warmer or throttle performance slightly to stay cool.

The RTX 5060 is more compact and more power-efficient, while the RX 9060 XT leans toward higher performance and longer-term memory flexibility. Both have strengths depending on what you’re building for.

Conclusion

The PNY RTX 5060 8 GB Single Fan brings together updated architecture, faster memory, and practical design choices in a compact card that fits where larger models won’t. It runs cool enough under basic use, handles modern games well at 1080p, and supports creative tools with features that speed up AI and video workflows. With one fan and 8 GB of VRAM, it’s built more for everyday needs than for pushing limits, but the hardware holds up well for its size and price.

If you want to see how this version stacks up against the rest of the lineup, I’ve got a full comparison of all four PNY RTX 5060 8 GB models:

1. PNY RTX 5060 Single Fan Product Page

2. PNY VelocityX Software

3. NVIDIA Blackwell Architecture Overview

4. NVIDIA DLSS 4 Developer Guide

5. NVIDIA Studio Support and Setup

6. PNY Product Registration

7. HowManyFPS.com

You can reach me at alexander.obregon47@gmail.com for sponsorships, collaboration requests, or other professional opportunities.

Share Alexander Obregon's Substack

Bluetooth has come a long way from cutting headphone cords in the late nineties. What started as a short-range cable replacement is now handling private broadcasts, multi-room audio, and location tracking accurate to under ten centimeters. The newest spec, Bluetooth Core 6.1, was published in May 2025 and builds on years of quiet but steady progress.

Today we’re walking through the full version history of modern Bluetooth, starting at 5.0 in 2016 and following each major update through to 6.1 in 2025. Each version brought something new, like more range, better sound, improved privacy, or location features, while still building on what came before. We’ll look at what changed in each release, why it mattered, and how those changes shaped the Bluetooth devices we use today.

Subscribe now

Version Landmarks Through the Years

Bluetooth has been quietly improving in the background for years. Every new version adds something useful without breaking what’s already out there. This section walks through each major change from Bluetooth 5.0 onward. Each version solves a different technical limitation, and together, they’ve turned Bluetooth from a short-range audio link into something that handles audio, tracking, security, and long-range communication on battery-powered devices.

Bluetooth 5.0 Speed and Range Boost

In 2016, Bluetooth 5.0 came out and changed the game. Before that, most people thought of Bluetooth as something for short-range tasks like pairing headphones or syncing a smartwatch. It worked, but it was slow and didn’t reach very far.

Bluetooth 5.0 doubled the data rate for devices that wanted faster transfers, pushing it to 2 megabits per second. It also introduced a new method for longer range, especially outdoors, by adding more coding to the signal. That meant you could send data farther without needing more power. Devices could communicate across rooms or even between walls in a small building. And with longer advertising packets, devices could broadcast more information at once, which mattered for things like beacons and sensor updates.

These range and throughput improvements gave Bluetooth the flexibility to handle larger spaces without changing its basic foundation. It helped push the protocol out of its usual corner of personal gadgets and into broader setups like sensors, beacons, and even industrial tracking systems.

Bluetooth 5.1 Direction Finding

About three years after 5.0, Bluetooth 5.1 added something that had never really been part of the spec before. It introduced a way for devices to figure out where a signal was coming from, using special antenna configurations. With the right hardware, a receiver could measure the angle a signal arrived from or was sent toward. That meant you could not only tell if something was nearby but also what direction it was in. This opened up all kinds of location-aware uses, from helping someone find a tagged object to tracking equipment moving through a warehouse.

What made this stand out is that it didn’t need GPS or Wi-Fi. It worked over Bluetooth alone, using phase shifts and antenna spacing to measure direction indoors. That was a big shift. You could now build things that responded to how you moved, not just where you were. And this was only the beginning of Bluetooth’s move into location. It shifted the focus from simply maintaining a link to knowing where that link was happening in space. That mattered for indoor navigation, warehouse automation, and security systems that needed to react based on movement, not just presence.

Bluetooth 5.2 LE Audio

Then came 5.2, which introduced something called LE Audio. That’s short for Low Energy Audio, and it was built from the ground up for efficiency. The update included a brand-new audio codec called LC3. It replaced the older SBC codec that had been around for years.

What LC3 did was pretty smart. It gave similar or better sound quality while using less bandwidth. That helped save battery life on both ends of a connection. But the bigger change was support for multi-stream audio. Now you could stream the same audio to multiple earbuds or hearing aids at once, or switch between them smoothly. This laid the groundwork for broadcast audio too, where a single device can transmit sound to many listeners at the same time in public spaces. It also changed how Bluetooth handled private and shared listening. Auracast made it possible to broadcast audio in a room without needing to pair each receiver. That made Bluetooth more useful in public places where wires were never practical, and Wi-Fi didn’t fill the gap.

Bluetooth 5.3 Efficiency Tweaks

5.3 didn’t add anything flashy but made important improvements that affected how devices stay connected. It allowed connected devices to reduce how often they talk to each other without closing the connection. That helped wearables and sensors stay paired longer while using less power. It also improved periodic advertising, which is how devices like fitness trackers or room sensors let others know they’re around without needing a constant connection. Less communication overhead means longer battery life, and that’s been a common thread through all these updates.

What stood out about 5.3 was how it supported always-on devices. Many of them spend most of their time doing nothing but still need to be available. By adjusting connection behavior without breaking links, Bluetooth became better at staying out of the way until needed.

Bluetooth 5.4 PAwR and Encrypted Advertising

Bluetooth 5.4 was more about scaling. It introduced something called Periodic Advertising with Responses. Instead of having to listen all the time, a small device like an electronic shelf label could wait for a specific schedule and only talk then. This let one hub manage thousands of tiny, low-power devices without chaos.

That mattered for retail and logistics, where you might have hundreds of devices in one area that all need to check in at once. Before 5.4, that kind of load would have overwhelmed a central hub. Now, it could stay organized and low-power at the same time.

The other part was encrypted advertising. Before, any broadcast message was easy to read if you were nearby. With this update, devices could send information that only a trusted group could decrypt. That mattered for privacy and for systems where not everyone should see what’s being transmitted. It added a basic kind of access control to something that had always been open.

Bluetooth 6.0 Channel Sounding

Version 6.0 brought in something entirely new. It added precise distance measurement, using a technique called Channel Sounding. The signal now lets devices measure distance with centimeter-level precision, typically within about 20 centimeters (around 7.9 inches) in early tests.

This opened the door to proximity-based access control. A car could unlock only if your phone was physically close. A building could log you in based on how near your badge was to a reader. It wasn’t just about checking that a device was connected, but about knowing exactly where it was. And all of it ran on the same Bluetooth Low Energy base the earlier updates had built on.

Channel Sounding runs over the same 2.4 GHz LE radio, but most products will still need a Bluetooth 6-ready chip that supports the new PHY and timing features to enable it. That kept it simple to deploy in devices that were already in motion.

Bluetooth 6.1 Randomized RPA Timing

Bluetooth 6.1 followed 6.0 by just a few months. It didn’t bring sweeping changes but refined privacy and power use. One of the ways Bluetooth protects users from tracking is by rotating its address regularly. This random address, called an RPA, makes it harder to identify a device over time. 6.1 introduced randomized timing for when those rotations happen. Instead of changing at fixed intervals, the timing now varies slightly, which throws off passive tracking attempts that rely on patterns. This update also cut down idle power consumption further, making always-on devices even more efficient when they weren’t actively sending data.

Bluetooth had already been chipping away at energy use for years. With this update, it also made quiet strides in protecting users from unwanted attention.

Market Adoption Outlook

Bluetooth’s technical growth is only part of the story. To get a real sense of where things are heading, it helps to look at which versions are actually showing up in products and how quickly the newer ones are catching on.

Current Landscape

As of mid-2025, Bluetooth 5.3 is everywhere. Apple’s iPhone 15 lineup shipped with it, and the iPhone 16 series kept it going. Samsung’s Galaxy S24 models use it too, pairing it with Wi-Fi 6E and, in the case of the Ultra, Wi-Fi 7. You’ll also find it in Bose’s QuietComfort Ultra headphones and earbuds. On the wearables side, Apple’s fourth-gen AirPods include 5.3, and so do a growing number of smartwatches and smart home devices. It’s common because it works. The spec is stable, energy-efficient, and already built into the chipsets most companies are using right now.

Emerging Versions

Bluetooth 5.4, which landed in early 2023, is starting to show up in more places, but it’s still early days. Qualcomm’s newer Snapdragon chips support it, so mid-range Android phones coming later this year will likely have it built in. Sennheiser’s Momentum True Wireless 4 earbuds were one of the first products to push it for Auracast and LE Audio. You’ll also see it pop up in a few budget earbuds online. It’s growing, but most people are still using 5.3 without even thinking about it.

Bluetooth 6 Adoption

Bluetooth 6.0 came out in late 2024 with a new trick, channel sounding for more accurate distance measurement. You won’t find it in phones or laptops yet, but the pieces are starting to line up. Nordic Semiconductor’s upcoming chips support it, and Qualcomm’s FastConnect 7700 is already spec-compliant. You can get early developer kits, but no finished consumer hardware has shipped with it yet.

Bluetooth 6.1 was published in May 2025. It adds better privacy through randomized address rotation and cuts down idle power use. It’s too new to be in anything shipping right now, but it’s coming. First products with 6.1 features are expected sometime in 2026, once vendors update their stacks and start rolling them into devices.

• Bluetooth Core Specification Archive

• Introduction to LE Audio

• Bluetooth Technology Overview

• Qualcomm FastConnect 7700 Product Page

Share
