Sparse Table Construction in Java

Image Source

Range queries on a fixed array show up in many problems, from competitive programming to low latency analytics. Scanning the whole range for every question repeats work you could reuse. Sparse tables trade extra memory and preprocessing for constant time answers, as long as the array never changes and the operation follows rules such as minimum, maximum, or greatest common divisor.

Sparse Table Basics

There are lots of range query problems can reuse far more work than a direct scan suggests, and sparse tables capture that reuse in a fixed structure over the array. Preprocessing builds a grid of precomputed answers over blocks whose lengths follow powers of two, and that grid holds enough information to answer any query by combining a tiny number of entries. After the table is ready, every query runs in constant time, as long as the array never changes and the operation fits rules that work with overlapping blocks, such as minimum, maximum, or greatest common divisor.

Static Range Query Problems

Workloads that keep one array fixed but ask many interval questions fit naturally into static range query problems. With an input such as int[] arr, the content is treated as frozen, and all questions ask for something about intervals like [l, r] without inserting, deleting, or updating elements. That restriction can sound strict. Many real data sets behave this way when they are loaded from storage and then queried without modification.

Range minimum query is a good example, where many questions ask for the smallest value between two indices. One direct method scans from l to r and tracks the minimum seen so far. That strategy works and is easy to write. Time cost, however, grows with interval length. If queries arrive in large numbers and ranges tend to be long, total work grows toward O(q * n) for q queries over arrays of size n.

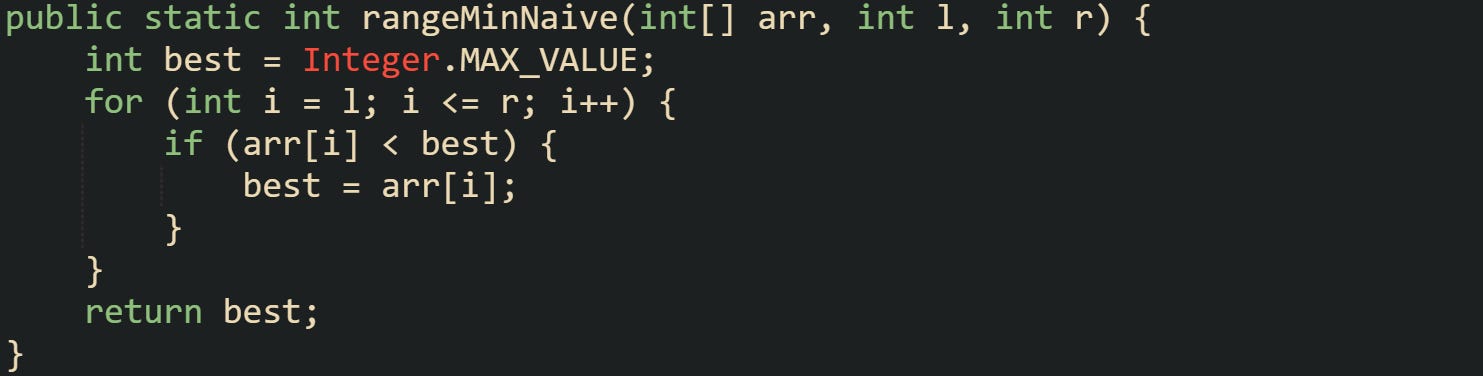

Many developers start from a loop like this and only later ask how to reuse work between queries. Sparse tables answer that question by precomputing answers for many intervals ahead of time and arranging those answers so that two of them can be combined to cover any query range.

Operations that behave well with sparse tables have two traits that matter. They need to be associative, so grouping does not change the result, and they need to tolerate overlapping intervals in a way that does not break correctness. Range minimum and maximum both pass that test, because taking the minimum or maximum of the same value twice still leaves the same result. Greatest common divisor works for the same reason. Range sum does not, due to duplicate counting of overlapping intervals, so prefix sums or segment trees are used there instead.

Static range query problems benefit most when there is a single array with many queries, rather than a stream of short-lived arrays. Preprocessing has a cost of its own and only pays off when the number of queries is large enough that the O(1) query time offsets the initial O(n log n) construction. Sparse tables fit this niche well in competitive settings or analytic workloads where raw arrays are scanned repeatedly with the same query shape.

Power Of Two Block Layout

Sparse tables rely on a regular grid of blocks whose lengths are powers of two. Level zero holds blocks of length one, so that level just mirrors the original array. Level one holds blocks of length two, level two holds blocks of length four, and so on. For each level k, block length equals 2^k, and block i on that level covers the interval [i, i + 2^k - 1]. That indexing rule does all the heavy lifting. Every block knows its length from k, and its start index from i. Higher levels have fewer valid starting positions, because longer blocks fit in fewer places. Block length doubles with each level, while the number of blocks shrinks, and coverage of the array remains dense.

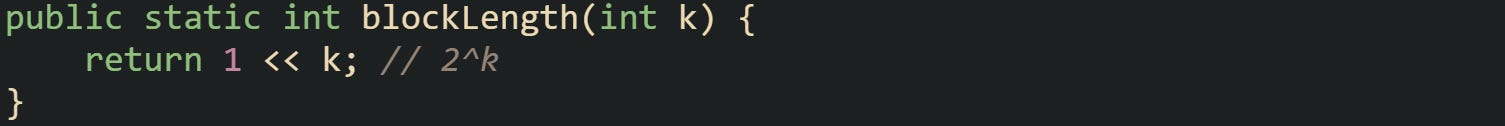

Let’s look at a small helper method in Java expresses the block length rule:

That single expression gives a block size for every row of the sparse table. With block length known, formulas like start = i and end = i + length - 1 describe exactly which range a table entry covers.

Every range [l, r] can be covered by two such blocks. Length len = r - l + 1 has a largest power of two that fits inside it, usually written as 2^k where k = floor(log2(len)). One block starts at l and covers 2^k elements. A second block of the same length ends at r, so its start index is r - 2^k + 1. Those two blocks either meet or overlap, and they still span the entire query interval.

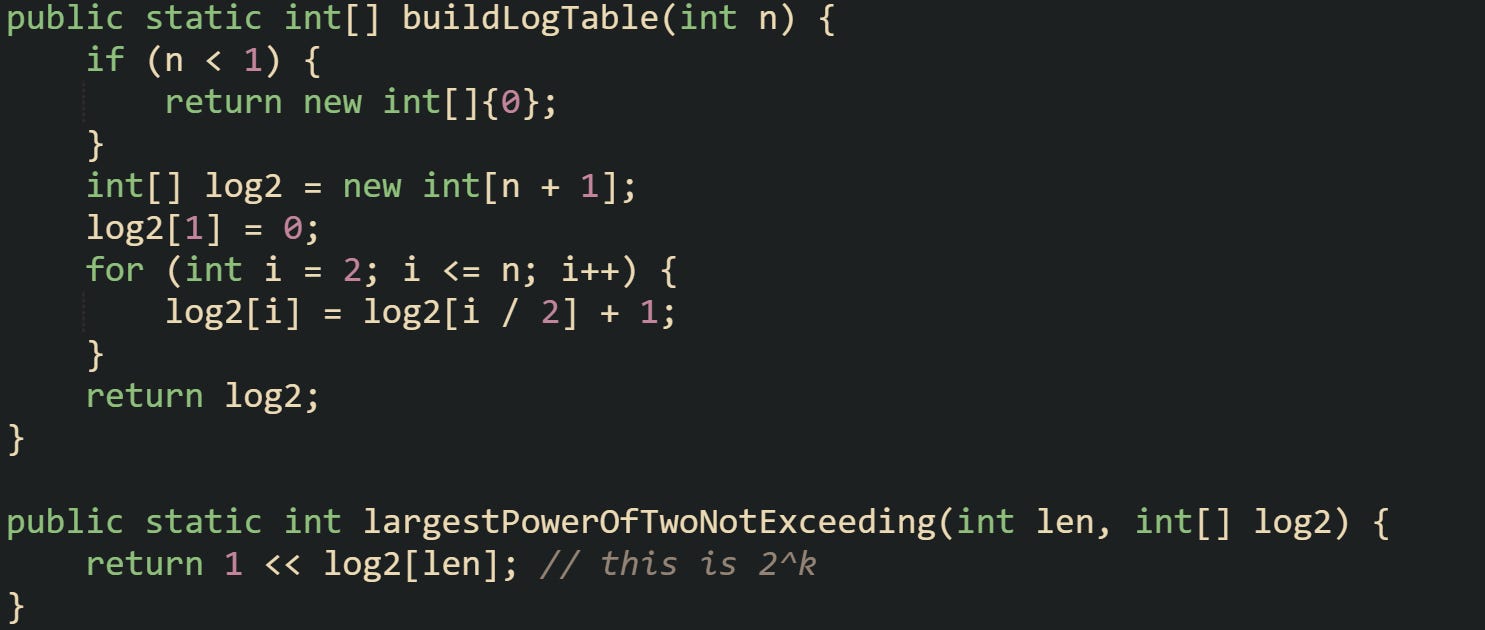

Now let’s see some code that computes the largest power of two not exceeding a given length len without floating point math, which is common in sparse table implementations:

This log table lets query code move from a raw interval length to the correct level k in constant time. After k is known, both covering blocks are easy to locate. Their precomputed answers live at positions like st[k][l] and st[k][r - (1 << k) + 1] where st is the two dimensional array that stores sparse table values.

Power of two layout keeps block boundaries aligned in a way that meshes with binary decomposition of any range length. Any positive integer length can be expressed as a sum of powers of two, and the sparse table takes a special case of that idea by always taking two equal powers of two that cover the range with at most some overlap. That structure is what turns an arbitrary query interval into a pair of constant time lookups.

How Table Size Grows

Memory use grows faster than linear when a sparse table is built on top of an array, and it helps to see how those numbers arise. For an array of length n, levels in the sparse table range from k = 0 up to k = floor(log2(n)), so there are floor(log2(n)) + 1 rows overall.

Row 0 has n entries, one per element of the original array. Row 1 holds answers for blocks of length two, and only n - 1 such blocks fit. Row 2 works with blocks of length four, and that row holds n - 3 entries. Higher rows continue this downward trend, because longer blocks cover more indices and leave fewer starting points. One rough upper bound treats every row as if it had length n, which gives at most n * (floor(log2(n)) + 1) entries.

That bound leads to the standard O(n log n) space estimate for sparse tables. Preprocessing time follows the same scale, because filling each entry requires constant work after the previous row is ready. Multiplying n by log2(n) gives a sense of how much memory and time sparse tables need in exchange for O(1) query time.

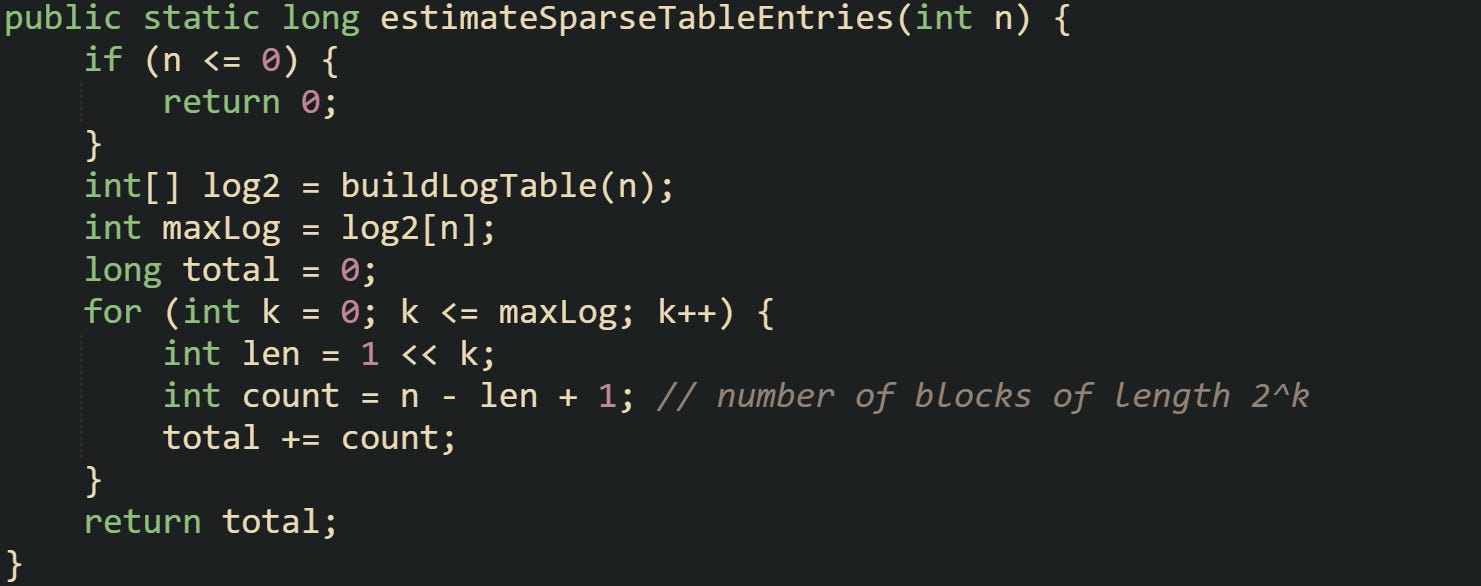

A helper method can compute the exact number of stored values for a given n like this:

This estimator walks through every level, computes the block length for that level, and adds up how many blocks of that length fit inside the array. That sum matches the number of stored answers in a fully built sparse table for range minimum queries.

Memory growth at O(n log n) works well when the array length is moderate and the number of queries is large. Capacity planning for a dense, high volume array needs an eye on both numbers, as sparse tables store every value in many overlapping blocks. That extra storage is the trade that converts long scans into constant time lookups.

Building Sparse Tables In Java

Java code for sparse tables stays close to the math idea without needing extra libraries or frameworks. Arrays hold both the original data and the precomputed answers, and a small helper class is enough to support fast range queries on one fixed array. Time and space costs stay predictable, and most of the work happens in a preprocessing step that fills a two dimensional table from shorter blocks up to longer blocks.

Precomputation Step

Construction of the sparse table starts from the raw input array and builds three pieces of state. Length n tracks how many elements live in the array. Two dimensional array st stores precomputed answers for many block sizes. One dimensional array log2 stores floor values of base two logarithms for all lengths from 1 to n. That helper array lets query code jump directly to the correct row of the table for any interval length.

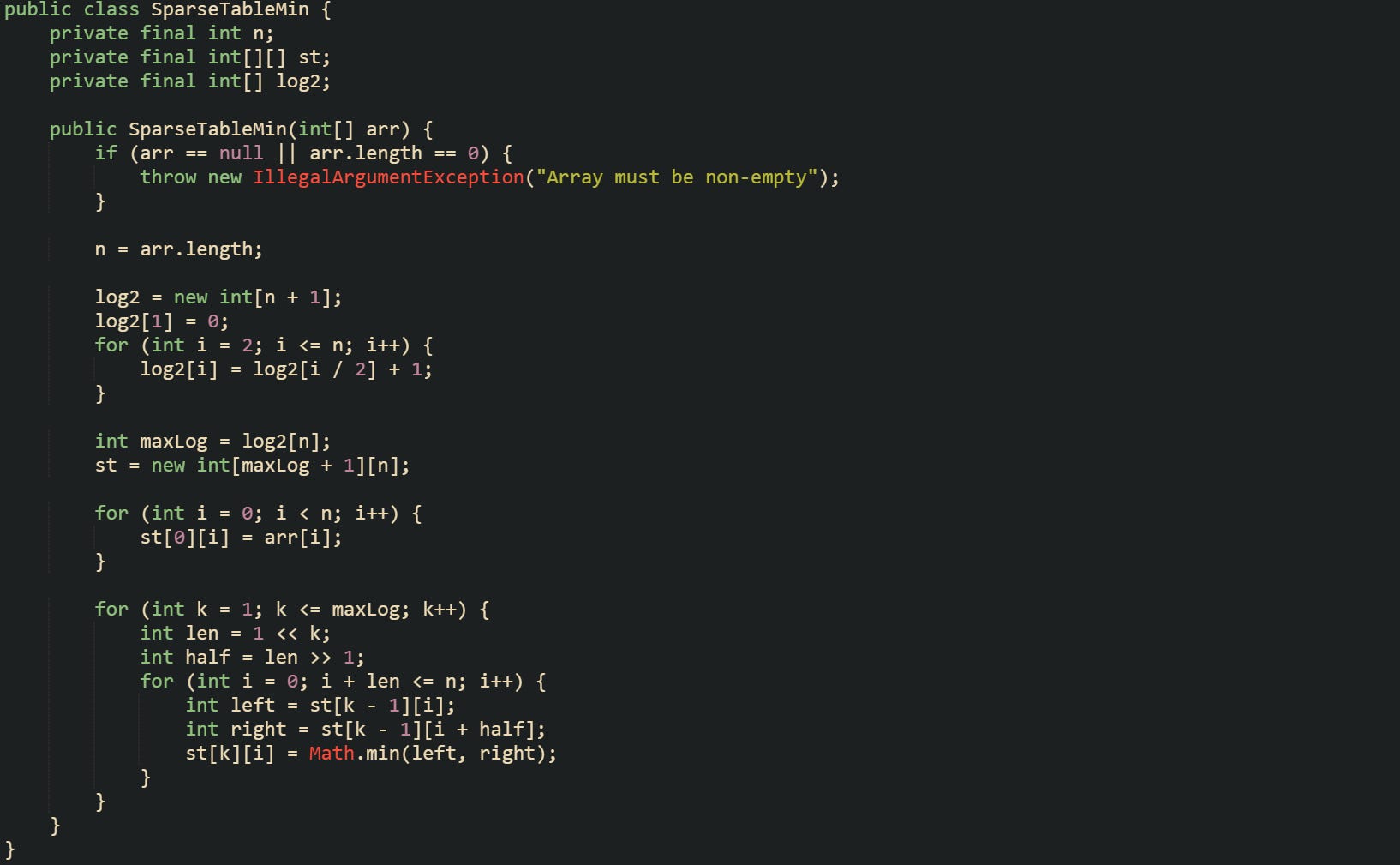

For a compact SparseTableMin class for range minimum queries in Java, it can look like this:

Constructor work follows the same structure described in the theory section. The log2 loop fills floor logarithms in linear time, using the recurrence log2[i] = log2[i / 2] + 1. Variable maxLog holds the largest exponent such that 2^maxLog fits into n, so the table gets maxLog + 1 rows. Row zero copies the input array directly, and upper rows combine values from shorter blocks to form answers for longer blocks.

The nested loop over k and i is where the sparse table grid really takes shape. Level k works with blocks of length 2^k, while half holds 2^(k - 1). Every block at level k splits into two children at level k - 1, and those children live at indices i and i + half. Minimum values for those two children already sit in the table, so Math.min combines them into the parent entry. Total preprocessing work across all levels matches O(n log n), with table size in the same order.

Client code that wants to build a sparse table for an array of range minimum queries can do something like this:

A table instance built this way now holds precomputed minimums for every block length that is a power of two up to the array size. Query methods can read from st without touching the original array again.

Query Step With Two Blocks

Range queries in a sparse table read from the precomputed grid instead of walking through the array element by element. Most implementations expose a method such as rangeMin that accepts two indices l and r and returns the minimum value on the inclusive interval [l, r]. This method does not change the table or the input array and only needs a constant number of lookups, multiplications, and comparisons.

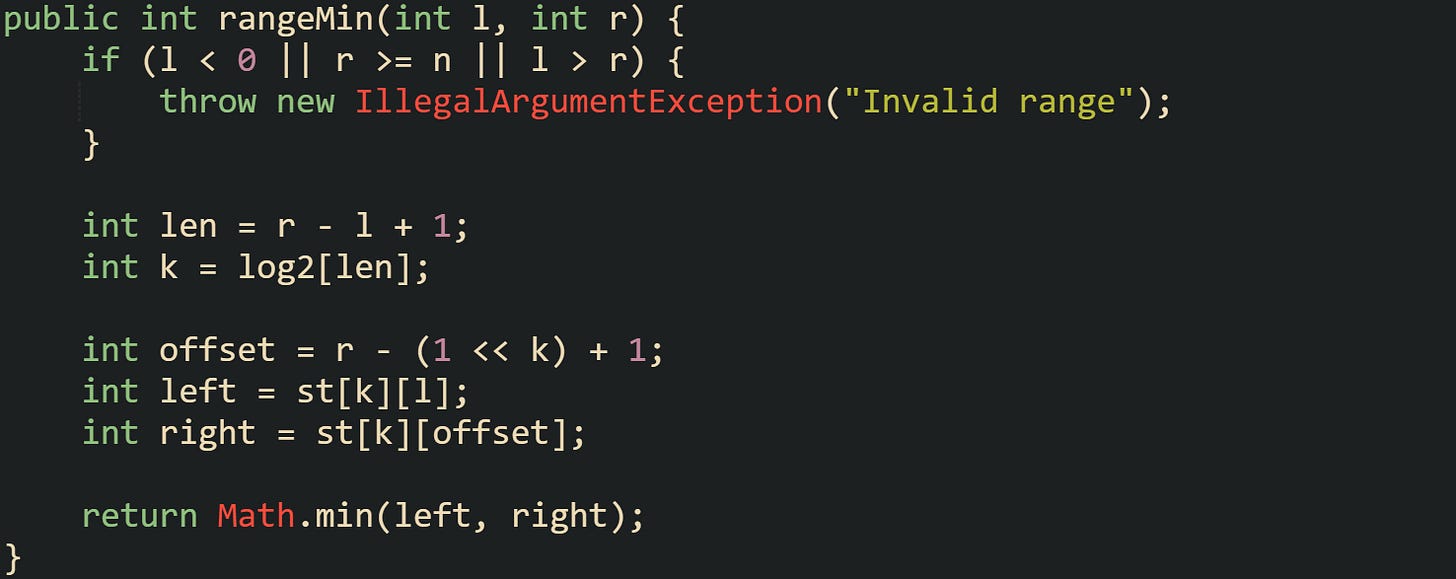

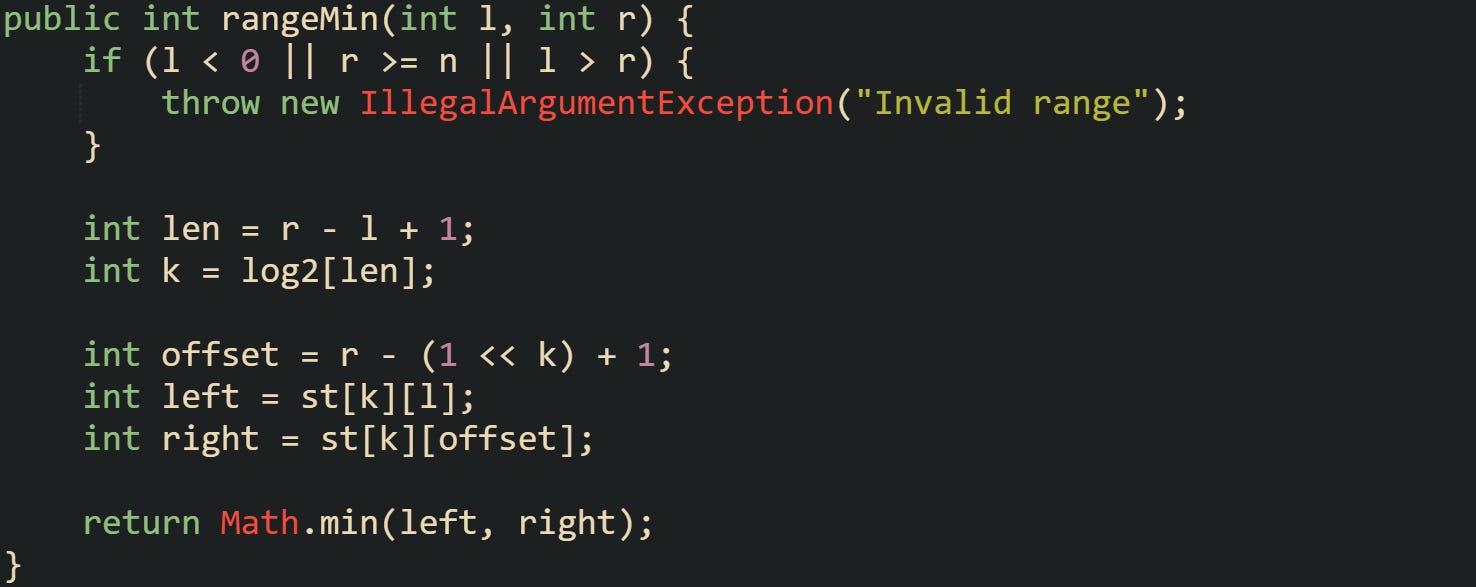

For the SparseTableMin class, a query method be as simple as:

Logic inside this method follows the two block idea. Interval length len leads straight to exponent k through the log2 table. That exponent identifies the row where block length 2^k lives. One block starts at l, and another block of the same length ends at r, so the second block begins at offset = r - 2^k + 1. Both blocks cover the query interval between them, and combining their precomputed minimum values through Math.min matches the true minimum on [l, r].

Suppose the original array is [7, 2, 5, 3, 9, 1, 4] and the query asks for the minimum on [1, 5]. That interval has length 5, so len = 5 and k = log2[5] = 2, which gives block length 4. One block covers indices [1, 4], and the second block covers indices [2, 5]. Both blocks overlap on [2, 4], yet minimum over the union of those two blocks still equals the true minimum on [1, 5], because the overlap does not change the result for min. Values st[2][1] and st[2][2] hold those two block minimums, and Math.min returns the smaller of the two.

Static behavior of sparse tables also appears in query code. Range methods never update entries in st or log2, so all queries work against the same fixed view of the input array. Any change to the array after construction would require building a new table to keep answers correct, which is why sparse tables are suited to static data where read heavy workloads dominate.

Conclusion

Sparse tables give a solid way to turn a normal array into a layered grid of answers that speed up static range queries. Precomputation builds rows of blocks whose lengths follow powers of two, and each cell stores the result of an operation such as minimum or maximum for that block. Query code then picks a single exponent from the log table, reads two overlapping blocks that cover the requested interval, and combines their stored values in constant time. With that structure in place, the mechanics come down to index math, bit shifts, and associative operations, which makes sparse tables a practical tool whenever many read only range queries need predictable and fast behavior.
