The Internal Steps of a ClassCast During Java Execution Test
What the JVM Actually Does When You Cast Objects
When you cast an object to a different type in Java, especially from a general reference to a more specific one, the JVM checks at runtime to see if the cast is valid. If it isn’t, it throws a ClassCastException. This check looks at the object's actual type, uses type metadata, and may even run into class loader boundaries. Behind the scenes, there’s a consistent process that decides if the cast will succeed.
The Basics of Casting Between Objects
Casting happens when you tell the JVM to treat an object as if it’s a different type. In Java, that usually means casting from a parent type to a child type. You don’t need to cast when moving up the inheritance tree, like from a String to an Object. That’s automatic. But casting the other way, from something general like Object down to something specific like String, requires an explicit cast and a runtime check.
Here’s what that looks like:
The cast is written in the code, but the JVM does the real work of making sure it’s valid when it runs. If obj really holds a String, the cast works. If not, the JVM throws an exception.
You can also do this with interfaces:
When the JVM Performs the Type Check
The JVM doesn’t check the cast until the program is running. The compiler looks at the declared types and verifies that a cast could work based on inheritance, but it doesn’t guarantee that it will work.
When your Java code is compiled, each cast is turned into a checkcast instruction in the bytecode. That’s what the JVM uses to verify the type at runtime.
Let’s take this line of code:

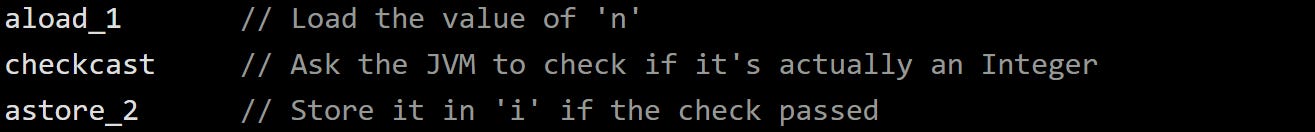

The compiler turns it into a few bytecode steps:
If n held a Double, the JVM would stop the program right there and throw a ClassCastException. The actual check happens at the moment the checkcast instruction runs.
What Triggers a ClassCastException
The JVM throws a ClassCastException when the cast can’t work because the real object isn’t an instance of the type you're casting to. The variable type in the code doesn’t matter. Java only cares about the actual class of the object in memory.
Here’s a quick example:
The compiler allows it because Boolean and Double both extend Object. But at runtime, the JVM checks the real type and sees there’s no connection between Boolean and Double, so it throws.
This exception isn’t delayed or hidden. It happens right where the cast is written. If you wrap the cast in a try-catch block, you can catch it and keep going, but otherwise the program stops there.
How the JVM Uses Type Metadata
Every object in the JVM has a reference to its class metadata. That metadata holds a map of what class the object belongs to, what its parent is, what interfaces it implements, and other type details. When a cast happens, the checkcast instruction looks at this metadata and compares it with the target type. If the object’s metadata shows it’s compatible with the requested type, the cast works. If not, the JVM throws.
This system keeps the check fast. The object header already points to the metadata, and the metadata contains enough type structure to answer the cast question in a few steps.
Let’s say you cast an object to List:
The metadata for ArrayList says that it implements List, so the cast works. If obj had been something like a HashMap, the cast would fail on the spot.
What Happens with Different Class Loaders
Class loaders can create confusion in casting, even when class names match. In Java, two classes with the same name are only equal if they were loaded by the same class loader. This matters a lot in plugin systems, web apps, or any setup where isolated class loaders are used.

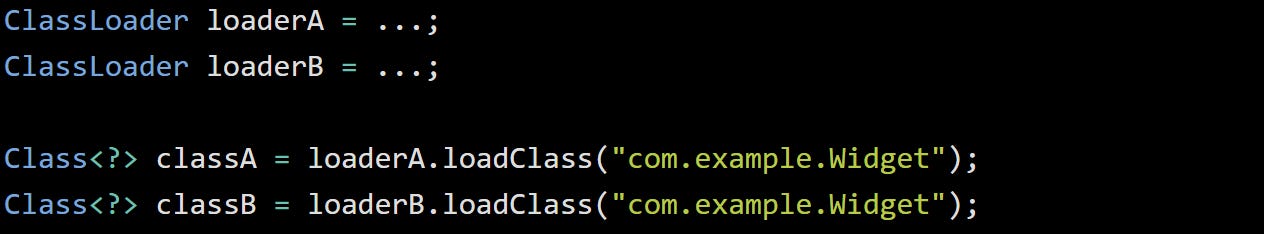

Let’s say you have two versions of the same class:
They have the same name, but the JVM treats them as different. If an object is created from classA and you try to cast it to classB, it fails, even though the method names, fields, and package all match.
The JVM checks both the class name and the class loader. If either one is different, the cast isn’t allowed.
This comes up often when different parts of an app load the same library separately. It’s also common in frameworks that isolate modules to prevent class conflicts.
Array Casting Rules in Java
Arrays in Java follow casting rules just like regular objects, but with some extra structure. The base type and the number of dimensions both need to match for a cast to work.
If the array reference type is incompatible, the cast fails immediately:
The array was created as an Object[]. The cast tries to treat it as a String[], but the JVM checks the actual array type and rejects the cast on the spot.
There’s another case where the cast itself works, but later operations cause problems. If the array element type doesn’t match what you try to store in it, you’ll get an ArrayStoreException instead:
This is also true with multi-dimensional arrays. The shape and base component type must both line up:
But if the underlying array type is wrong, the cast fails:
The JVM uses metadata to check both the structure of the array and the element type. If either one doesn’t match what the cast expects, it throws.
What Happens with Generics and Type Erasure
Generics in Java are erased during compilation. That means the type parameter information is removed, and the bytecode only knows about raw types. This affects casting because the JVM can’t fully check the generic part at runtime.
The compiler gives a warning, but the JVM doesn’t see a problem, because both sides are List. It can’t see that one was written with String and the other with Integer.

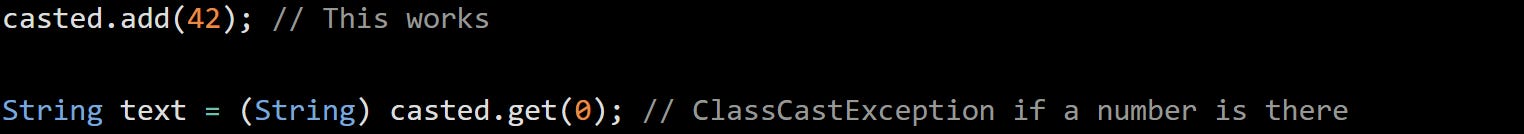

The trouble comes when you try to use it:
The error happens not when you cast the list, but when you pull something out of it and try to cast that element. Java trusts you when you cast a generic collection. The real check happens when you interact with its contents.
That’s one reason casts with generics can be fragile. The compiler helps a bit, but at runtime, the JVM only works with erased types and can’t protect you from mismatches in parameter types.
Conclusion
Every cast in Java runs through a mechanical check that depends on the object’s actual type, not what the variable says in the code. The JVM uses the checkcast instruction to decide if the cast is valid, pulling type information from the object’s metadata and checking it against the target. When casts fail, it’s often because the types aren’t related, or because class loaders separated classes that otherwise look the same. Arrays follow the same rules, with stricter checks around structure. Generics make things trickier, since erased types don’t carry enough detail for a full check.
